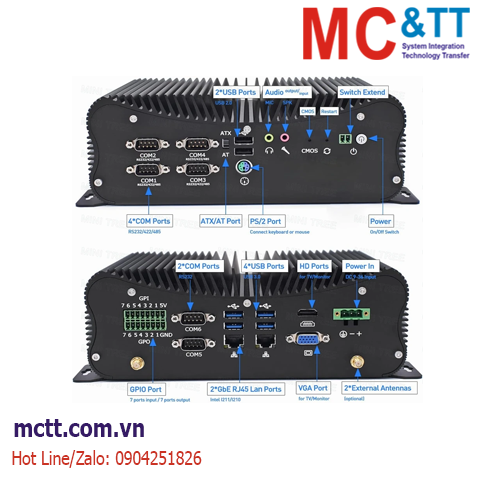

Máy tính nhúng công nghiệp không quạt (2 LAN + 6 COM) Zemao ZM-F80

CPU

Intel® Core™ I7-1165G7

TDP

12~28W

RAM

2*SO-DIMM DDR5/DDR4 memory slot, up to 64G

Storage

1 x mSATA3.0 slot for MSATA SSD, support 6Gb/s

1 x M.2 slot for NVME 2280 SSD, support 6Gb/s

1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s

GPU

Intel Iris Xe Graphics

Audio

Intel High Definition Audio Controller

I/O

Switch

1 x Power On/Off Switch

Power

1 x 3pin phoenix terminal power supply input, support 9~36V

Button

1 x DIP Switch, support ATX/AT boot mode

USB

4x USB3.0, 2 x USB2.0

Display

1 x VGA, 1 x HDMI 1.4

LAN

2 x RJ45 Intel 2.5G LAN

COM

6 x DB9 COM (4xCOM support RS422/RS485)

GPIO

1 x GPIO (7 pin input, 7 pin output)

Audio

1 x MIC, 1 x SPK

Other

1 x PS/2 (keyboard and mouse 2 in 1)

1 x embedded SIM card slot onboard

1 x Reset, 1 x CMOS clear button

1 x 2pin Phoenix terminal power supply input

Expansion

1 x mini PCIE-half port for Wi-Fi/Bluetooth module

1 x mini PCIE-full port for 3G/4G/Wi-Fi/Bluetooth module

1 x Extended IO, support LPC, USB, PCIE

OS Support

Windows10/11/Linux

Power Supply

DC 9V~36V, recommend 12V/5A

Dimension

249x150x86mm

Weight

NW: 2.3Kg, GW: 3.5Kg

Operating Temperature

-20°C to +60°C (with W.T. SSD/DRAM)

Storage Temperature

-30℃ to +70℃

Relative Humidity

10%~90% (non-condensing)

Material

Fanless Aluminum Case, IP40
