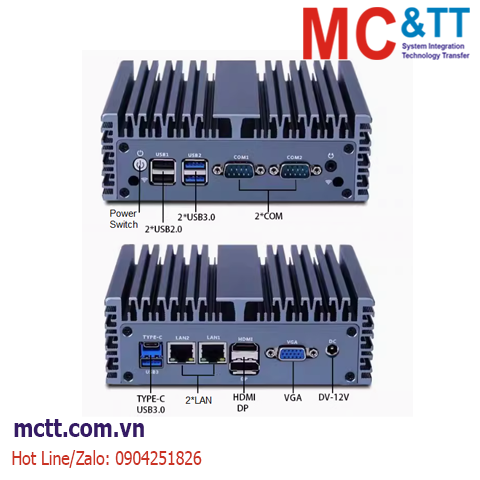

Máy tính nhúng công nghiệp không quạt (2 LAN + 2 COM) MCTT MBOX-2L2C-MN-10TH
Tính năng
• CPU 10th Gen Intel® Core™ i3/i5/i7
• One channel DDR4 SO-DIMM, up to 32GB
• Storage: 1* M.2 2280 M-key Slot; 1* 2.5” SATA3.0
• Support 2* GLAN, 2* COM and 6* USB
• Support DP+HDMI+VGA display output
• Support RTC, Wake on LAN, Watch Dog, Auto Power On
• One embedded SIM card slot onboard for 3G/4G/5G module
• Fanless system without cooling fan
Thông số kỹ thuật
|
CPU |
CPU Model |
Intel® Core™ i7-1065G7 |
Intel® Core™ i5-1035G7 |
Intel® Core™ i3-1005G1 |
|
Graphic |
Intel® UHD Graphics |
Intel® UHD Graphics |
Intel® UHD Graphics |
|
TDP |
15/25W |
15/25W |
15/25W |
|
RAM |
1* non-ECC SO-DIMM Socket, support DDR4 MHz, up to 32GB |
|
Storage |
1* M.2 (NGFF) 2280 M-key Slot
1*2.5” SATA3.0 slot |
|
Supported OS |
Windows 10/11/Linux |
|
I/O Interface |
COM |
2* DB9 COM (support RS-232/422/RS485, can be switched by BIOS Setting) |
|
Ethernet |
2* Intel I226-V 2.5G RJ45 LAN |
|
USB |
3* USB3.0; 2* USB2.0; 1* Type c USB3.1 |
|
Video |
1* HDMI 1.4, max resolution up to 4096*2160@30Hz
1* DisplayPort 1.2, max resolution up to 3820*2160@30Hz
1* VGA, max resolution up to 4096*2160@30Hz |
|
Audio |
1* Audio Jack |
|
SIM |
1* Built-in SIM Card Slot onboard |
|
Power Supply |
12V DC; 1* DC Jack (Adapter 12V/5A, 60W) |
|
Expansion |
1 x mini PCIE slot for Wi-FI&BT or 3G/4G LTE module with dual antenna |
|
Operating Temperature |
-10 ~ 60 °C (with W.T. SSD/DRAM) |
|
Storage Temperature |
-30 ~ 70 °C (-40~185 °F) |
|
Relative Humidity |
10%~90% (non-condensing) |
|
Dimensions |
156 x 128 x533mm (W* H* D) |
|
Net Weight |
1.5 KG |
Thông tin đặt hàng
|
Part no. |
Description |
|
MBOX-2L2C-MN-10TH-I3 |
Fanless Embedded Industrial Computer with Intel® I3 1005G1, 2 LAN, 6 USB, 2 COM, DP+HDMI+VGA, Audio and power adapter |
|
MBOX-2L2C-MN-10TH-I5 |
Fanless Embedded Industrial Computer with Intel® I5 1035G7, 2 LAN, 6 USB, 2 COM, DP+HDMI+VGA, Audio and power adapter |
|
MBOX-2L2C-MN-10TH-I7 |
Fanless Embedded Industrial Computer with Intel® I7 1065G7, 2 LAN, 6 USB, 2 COM, DP+HDMI+VGA, Audio and power adapter |
