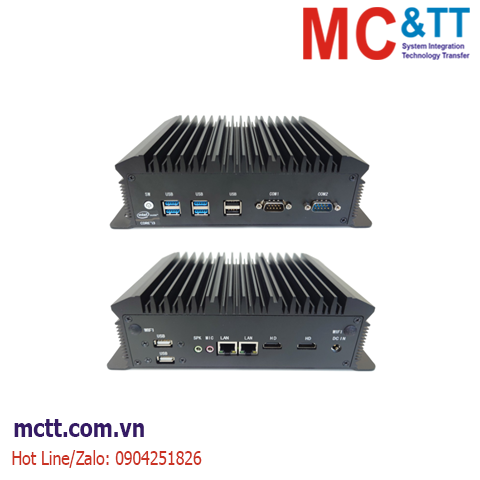

Máy tính nhúng công nghiệp không quạt (2 LAN + 2 COM) MCTT MBOX-2L2C-10TH
Tính năng
• CPU 10th Gen Intel® Core™ i5/i7
• Dual-channel DDR4 SO-DIMM, up to 64GB
• Storage: 1* M.2 2280 M-key Slot; 1* 2.5” SATA3.0
• Support 2* GLAN, 2* COM and 8* USB
• Support Dual HDMI display output
• Support RTC, Wake on LAN, Watch Dog, Auto Power On
• One embedded SIM card slot onboard for 3G/4G/5G module
• Fanless system without cooling fan
Thông số kỹ thuật
|
CPU |
CPU Model |
Intel® Core™ i7-10510U |
Intel® Core™ i5-10310U |
|
Graphic |
Intel® UHD Graphics 620 |
Intel® UHD Graphics 620 |
|
TDP |
15W |
15W |
|
RAM |
2* non-ECC SO-DIMM Socket, support DDR4-2666 MHz, up to 64GB |
|
Storage |
1* M.2 (NGFF) 2280 M-key Slot
1*2.5” SATA3.0 slot |
|
Supported OS |
Win 10; Win 10 IoT, Ubuntu, Debian, Kali, CentOS, etc. |
|
I/O Interface |
COM |
2* DB9 COM (support RS-232/422/RS485, can be switched by BIOS Setting) |
|
Ethernet |
2 x 10/100/1000Mbps Base-T LAN |
|
USB |
4* USB3.0; 4* USB2.0 |
|
Video |
2* HDMI 1.4, max resolution up to 4096*2160@30Hz |
|
Audio |
1* MIC, 1* SPK |
|
SIM |
1* Built-in SIM Card Slot onboard |
|
Power Supply |
12V DC; 1* DC Jack (Adapter 12V/5A, 60W) |
|
Expansion |
1 x mini PCIE slot for Wi-FI&BT or 3G/4G LTE module with dual antenna |
|
Operating Temperature |
-10 ~ 60 °C (with W.T. SSD/DRAM) |
|
Storage Temperature |
-30 ~ 70 °C (-40~185 °F) |
|
Relative Humidity |
10%~90% (non-condensing) |
|
Dimensions |
240 x 66 x133mm (W* H* D) |
|
Net Weight |
2.0 KG |
Bộ xử lý CPU
|
CPU |
Code Name |
Total Cores |
Total Threads |
Max Turbo Frequency |
Base Frequency |
Cache |
TDP |
Memory Types |
Integrated Graphics |
|
Intel® Core™ I7-10510U |
Comet Lake |
4 |
8 |
4.9 GHz |
1.8 GHz |
8 MB Smart Cache |
15W |
DDR4 |
Intel® UHD Graphics 620 |
|
Intel® Core™ I5-10310U |
Comet Lake |
4 |
8 |
4.4 GHz |
1.7 GHz |
6 MB Smart Cache |
15W |
DDR4 |
Intel® UHD Graphics 620 |
Thông tin đặt hàng
|
Part no. |
Description |
|
MBOX-2L2C-10TH-I5 |
Fanless Embedded Industrial Computer with Intel® I5 10310U, 2 GLAN, 8 USB, 2 COM, 2 HDMI, Audio and power adapter |
|
MBOX-2L2C-10TH-I7 |
Fanless Embedded Industrial Computer with Intel® I7 10510U, 2 GLAN, 8 USB, 2 COM, 2 HDMI, Audio and power adapter |
