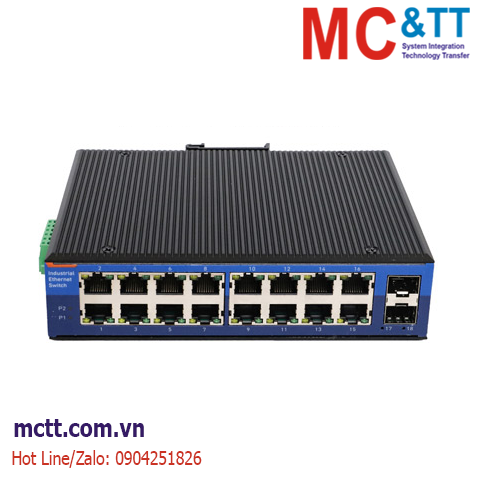

Switch công nghiệp quản lý 16 cổng Gigabit PoE + 2 cổng Gigabit SFP USR-ISG216P-SFP
USR-ISG216P-SFP an hardened 18-port Industrial PoE Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 16-port 10/100/1000BASE-TX RJ45 PoE +2G SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃
The USR-ISG216P-SFP provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
The USR-ISG216P-SFP is packaged in a compact IP40 case with DIN rail installation.It offers dual-redundant, reversible polarity 48V DC to 57V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Tính năng
- 16-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-Xfunction
- Port 1-16 PoE output, PoE budget: 480Wmax.
- 2-port gigabit SFP uplink
- 48V to 57V DC, redundant power input
- - 40℃ to 85℃operating temperature
- IP40 aluminum housing
- Supports 6KV DC Ethernet ESD protection
- Supports 6KV DC EFT protection for power line
- Free Fall, Shock and Vibration Stability
- DIN-rail hardware design
Thông số kỹ thuật
| Model No. |
USR-ISG216P-SFP |
| 1000BASE-TX Port |
16G port RJ-45 auto-MDI / MDI-X |
| PoE Specification |
PoE Standard: IEEE802.3af/ IEEE802.3at |
| PoE ports:1-16 port support PoE |
|
Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at) |
| PoE port Auto detect af/at devices |
| Output Voltage: DC48V |
| Power Pin Assignment:1/2+;3/6- |
| Power Type: End-span( Mid-span optional) |
| Uplink Port |
2G SFP slot |
| Performance Specification |
Bandwidth: 56Gbps
Packet Buffer Memory:12Mbit
Packet Forwarding Rate:41.7Mpps
MAC Address Table: 8K |
| Installation |
DIN rail |
| Maximum Frame Size |
10240bytes packet size |
| Flow Control |
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Enclosure |
IP40 aluminum housing |
| LED Indicator |
Power: Red
Run: Green
Fiber: Green
Ethernet: Yellow
PoE:Green |
| Power Input |
48 to 57V DC redundant power |
| Power Consumption |
< 15watts (excluded PoE) |
| Surge protection |
±4KV |
| Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network cables |
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤10meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Industry Standard |
FCC CFR47 Part 15,EN55022/CISPR22, Class A
IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)
IEC61000-4-3 (RS): 10V/m (80~1000MHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
| MTBF |
300,000hours |
| Dimensions (W x D x H) |
175.6 x 135 x 45.5 mm |
| Weight |
Product Weight: 1.18KG
Packing Weight: 1.3KG |
| Working Environment |
Working temperature: -40～85℃ ;
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation) |
Software
| Port Features |
IEEE 802.3x Flow control |
| Interface counters |
| Storm Control |
| Link Aggregation |
Static Aggregation |
| Dynamic Aggregation, LACP |
| Supports up to 8 aggregation groups, each group up to 8 ports Support source MAC, destination MAC, source destination MAC, sourceIP, destination IP, source destination IP routing strategy |
| MAC Table Management |
Support |
| Forwarding mode |
Support IVL forwarding mode |
| Static MAC Address |
Support |
| MAC Address Binding |
Support |
| MAC Address Filtering |
Support |
| Mirror |
Port-based Mirror |
| Spanning Tree |
IEEE802.1d STP; IEEE802.1w RSTP; IEEE802.1s MSTP |
| ERPS (G.8032) |
Single Ring, Sub-Ring, Multi-Ring |
| Load balance |
| Recovery Time < 50ms |
| GVRP |
Supported |
| QINQ |
VLAN-based QinQ |
| LLDP |
LLDP |
| LLDP-MED |
| Loop Protection |
Supported |
| VLAN |
4094 VLAN |
| Port-based VLAN |
| GVRP |
| Protocol VLAN |
MAC-based VLAN |
| IP Subnet-based VLAN |
| Voice VLAN |
Static entry |
| LLDP-MED |
| Port Isolate |
Support |
| IGMP |
Snooping IGMP V1 Snooping |
| IGMP V2 Snooping |
| IGMP V3 Snooping |
| Source Port Check |
| IGMP Fast Leave |
| IGMP Filter |
| MLD Snooping |
MLD V1 Snooping |
| MLD V2 Snooping |
| Source Port Check |
| MLD Fast Leave |
| MLD Filter |
Download
Datasheet
Thông tin đặt hàng
| USR-ISG216P-SFP |
16-port 10/100/1000BASE-TX+2G SFP Managed Industrial PoE Switch |
