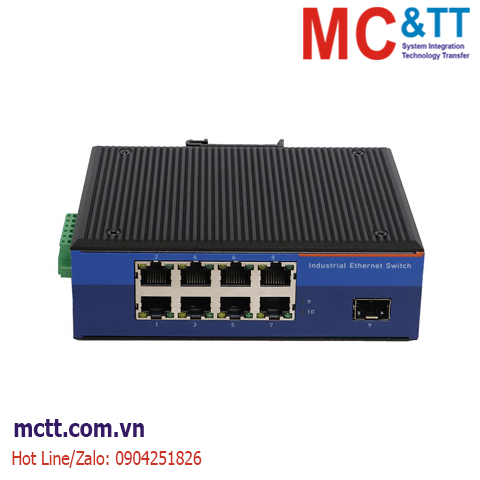

Switch công nghiệp 8 cổng Gigabit PoE + 1 cổng Gigabit SFP USR-ISG108P-SFP
The industrial POE switch series integrates data transmission and power supply functions, supporting IEEE 802.3af/at standards with up to 30W per port. It offers flexible port configurations (5/8/16/24 ports) in both managed and unmanaged types. Managed models enable advanced network management like VLAN partitioning and QoS policies, while unmanaged ones feature plug-and-play simplicity. Widely used in security monitoring and industrial scenarios, these switches reduce cabling costs and enhance network deployment flexibility
Tính năng
- Unafraid of extreme temperatures: -40°C~85°C
- 3-way power supply guarantee (DC48 - 57V): DC interface for plug-and-play; dual power terminal redundant power supply.
- High-quality aluminum alloy shell: Efficient heat dissipation.
- Industrial quality: 6KV lightning strike resistance design.
- DIN rail mounting: Compact size, easy to install.
- IP40 protection: Fully sealed, impervious to wind and sand.
Thông số kỹ thuật
| Model No. |
USR-ISG108P-SFP |
| Number of ports |
9 |
| Port specification |
1Gigabit optical port (SFP slot), 8 Gigabit electrical ports (10/100/1000Mself-negotiation) Singleport PoE power up to30W (IEEE802.3at);15.4W(IEEE 802.3af) |
| Ethernet standard |
IEEE802.3 10BASE-T; IEEE802.3u 100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; IEEE802.3af; IEEE802.3at |
| Mac address table |
16K |
| Backplane bandwidth |
20G |
| Cache |
14.88Mbit |
| Power supply |
DC12-52V, dual power redundancy, built-in over current 4.0A protection, reverseconnectionprotection |
| Power supply terminal |
Phoenix terminal power supply |
| Overall power consumption |
<3W |
| Installation method |
DIN rail |
| Heat dissipation method |
passive heat dissipation |
| Shell |
aluminium alloy |
| Entrench |
IP40 |
| Operating temperature |
-40~85°C |
| Storage temperature |
-40~85°C |
| Relative humidit |
10%~90% No condensation |
| Size |
143 x 101 x 44mm (L x W x H) |
| Bare metal weight |
<0.6Kg |
| Mean time between failures |
300,000hours |
Download
Datasheet
Thông tin đặt hàng
