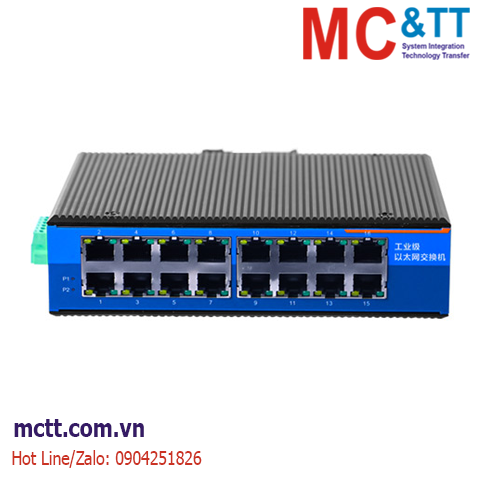

Switch công nghiệp 16 cổng Gigabit PoE USR-ISG016P
USR-ISG016P an Industrial 16-port Fast Ethernet Switch POE, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 16-port 10/100/1000BASE-TX POE interfaces delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃.
The USR-ISG016P series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
TheUSR-ISG016P series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 48V DC to 57V DC power supply inputs for high availability applications requiring dual or backup power inputs
Tính năng
- 12Vto 52V DC,redundant power input
- 48-57VDC (POE)
- -40℃ to 85℃ operating temperature
- IP40 metal case
- Supports 6KV DC Ethernet ESD protection
- Supports 6KV DC EFT protection for power line
- Free Fall, Shock and Vibration Stability
- DIN-rail and wall-mountable hardware design
Thông số kỹ thuật
| Model No. |
USR-ISG016P |
| 10/100/1000Base-TX Port |
16 port RJ-45 auto-MDI / MDI-X |
| PoE port |
16 port with IEEE802.3af/at POE+ function ( port 1 to port 16) |
| Performance Specification |
Bandwidth: 20Gbps
Packet Buffer Memory: 512K
Packet Forwarding Rate: 148800pps/port
MAC Address Table: 2K |
| Installation |
DIN rail kit and wall mount ear |
| Maximum Frame Size |
1522bytes packet size |
| Flow Control |
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Enclosure |
IP40 slim type metal case |
| LED Indicator |
Power: Red
Ethernet: Yellow
POE: Green |
| Power Input |
12 to 52V DC redundant power
POE :48-57V DC |
| Power Consumption |
3 watts / 10BTU (maximum) |
| Protection |
ESD (Ethernet): 6KVDC
Surge (Power): 6KVDC |
| Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network cables |
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤10meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| POE |
POE standard : IEEE802.3af/at
PoE ports: 1-16 port support PoE
Power Output: 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)
Power Pin Assignment:1/2+;3/6-
Power Type: End-span ( Mid-span optional) |
| Industry Standard |
FCC CFR47 Part 15,EN55022/CISPR22, Class A
EMS:
IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V(1s) |
| Certification |
CE FCC Rohs compliance |
| Dimensions (W x D x H) |
175.6 x 135 x 45.5mm |
| Weight |
Product Weight: 0.52KG
Packing Weight: 0.62KG |
| Working Environment |
Working temperature: -40～85℃ ;
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation) |
Download
Datasheet
Thông tin đặt hàng
| USR-ISG016P |
16port 10/100/1000Base-TX Industrial POE Switch |
