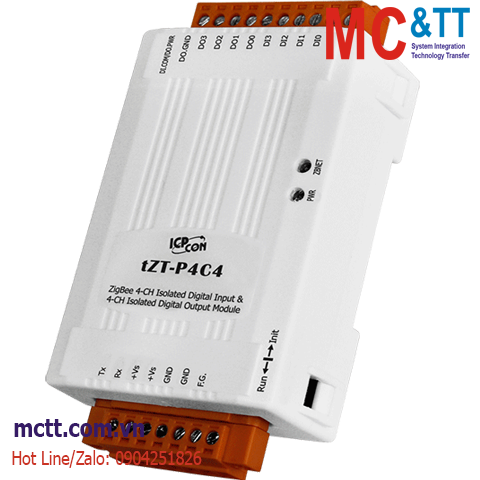

Module Zigbee Modbus RTU 4 kênh DI + 4 kênh DO ICP DAS tZT-P4C4 CR
Feature
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4G IEEE 802.15.4/ZigBee 2007 Pro Specifications
- Wireless Transmission Range up to 300 m
- Adjustable RF Transmission Output Power
- GUI Configuration Software (Windows Version)
- Supports AES-128 Encryption for the Wireless Communication (Passive)
- Supports ZigBee Repeater Function
- 4 Digital Input Channels and 4 Digital Output Channels
- All Digital Input Channels can be used as 16-bit Counters
- Sink-type Digital Output Channels with Overload Protection
- Surge and ESD Protection
- Configurable Power-on Value and Safe Value Settings
- DIN-Rail Mountable
Introduction
The tZT-P4C4 provides 4 channels for digital input and 4 channels for digital output, each of which features photocouple isolation. The tZT-P4C4 supports sink-type output with short circuit protection, while input is source-type. All input channels can be used a 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided. The tZT series products of ICP DAS have the advantage of low cost and low power consumption of ZigBee. Provide wireless communication capability up to 300 meters (LOS) standard transmission distance. Coupled with the dynamic mesh network, users can easily catch DIO data in difficult-to-wire environments.
Application
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
Specifications
| CPU Module |
| Watchdog Timer |
Module(1.6seconds),Communication(Programmable) |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±1 kV for Power |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal |
| LED Indicators |
| Status |
1 x Power and Communication |
| ZigBee |
| Antenna |
2.4 GHz - PCB Antenna (3dBi, 50Ω) |
| Protocol |
Supports DCON and ModBus |
| Standard |
ZigBee 2007 Pro |
| Transmission Power |
11dBm (Max. 19dBm) |
| Transmission Distance (LoS) |
300 m |
| Digital Input/Counter |
| Channels |
4 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Source |
| ON Voltage Level |
+6 VDC ~ +50 VDC |
| OFF Voltage Level |
Max. +5 VDC |
| Max. Counts |
65535 (16-bit) |
| Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Input Impedance |
10 KΩ, 0.66W |
| Overvoltage Protection |
± 70 VDC |
| Digital Output |
| Channels |
4 |
| Type |
Isolated Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+3.5 ~ +50 VDC |
| Load Current |
700mA/channel |
| Overvoltage Protection |
Yes |
| Overload Protection |
Yes |
| Power on Value |
Yes, Programmable |
| Safe Value |
Yes, Programmable |
| Power |
| Consumption |
1 W Max. |
| Mechanical |
| Dimensions (mm) |
98 x 52 x 27 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 °C ~ +80 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| tZT-P4C4 CR |
Tiny ZigBee Wireless 4-ch Isolated DI and 4-ch Isolated DO Module (ZigBee Router) (RoHS)
(Asia Only) |
