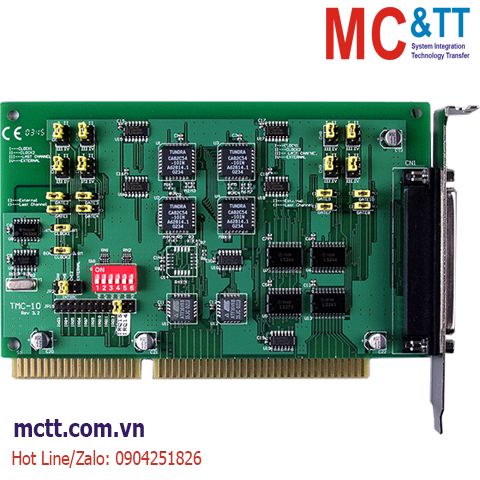

Card ISA 16 kênh vào/ra số DI/DO + 12 kênh Timer/Counter/Frequency ICP DAS TMC-10 CR
Features
- On board four 8254 timer/counter chips
- Eight independent 16-bit timer/counter and two cascaded 32-bit Timer/Counter
- 11 interrupt levels ,jumper selectable
- Two internal clock source
- Eight channel external clock source.
- 8-bit DO
Introduction
The TMC-10 is a general purpose timer/ counter and digital I/O Board for PC. It provides eight 16-bit Timer/Counter channel, two cascaded 32-bit Timer/Counter channels , 8-bit DO and two internal clock source (8 M/1.6 M;0.8 M/80 k) by jumper selectable. Four 8254 chips provides a variety of powerful timer/counter function modes to match your industrial and laboratory applications.
Applications
- Programmable voltage source
- Programmable current sink
- Harsh environment operation
- Process control
Click to view the Introduction of https://mctt.vn/isa-icp-das
Specifications
| Hardware |
| Connector |
Female DB37 x 1 |
| Digital Input |
| Channels |
16 |
| Type |
5 V/TTL |
| ON Voltage Level |
2.0 V Min. |
| OFF Voltage Level |
0.8 V Max. |
| Response Speed |
1.0 MHz (Typical) |
| Trigger Mode |
Static Update |
| Digital Output |
| Channels |
16 |
| Type |
5 V/TTL |
| Operation Mode |
Static Update |
| Load Voltage |
Logic 0: 0.4 V Max.
Logic 1: 2.4 V Min. |
| Load Current |
Sink: 24 mA @ 0.8 V
Source: 15 mA @ 2.0 V |
| Response Speed |
1.0 MHz (Typical) |
| Timer/Counter/Frequency |
| Channels |
12 |
| Type |
5 V/TTL(82C54 compatible timer) |
| Resolution |
16-bit |
| Input Frequency |
10 MHz max. |
| Reference Clock |
Internal: 8 MHz |
| PC Bus |
| Type |
ISA |
| Data Bus |
16-bit |
| Power |
| Consumption |
500 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
105 x 162 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| TMC-10 CR |
ISA Bus, 10-ch Timer/Counter Board (RoHS)
Includes one CA-4002 D-Sub connector |
