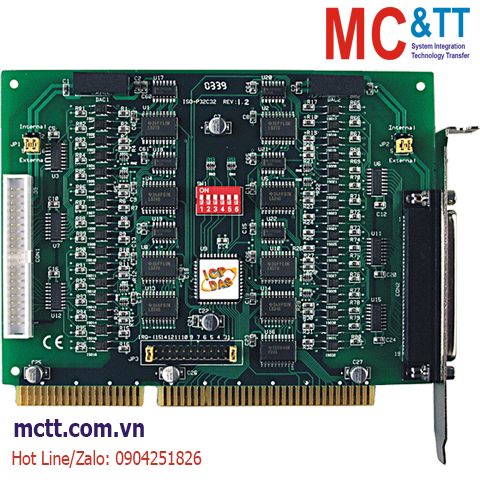

Card ISA 32 kênh DI + 32 kênh DO ICP DAS ISO-P32C32 CR
Features
- 32-channel Isolated DI
- 32-channel Isolated DO/Open-collector
- DC/DC converter build-in
- 3000 Vrms isolation voltage
- Interrupt handling
- Interrupt source : channel 0 and channel 16
Introduction
The ISO-P32C32 has 32 channels of Isolated DIs and 32 channels of Isolated DOs, arranged into four isolated banks. Each input channel use a photo-coupler input which allows either internal isolated power supply or external power selected by jumper. Each DO offers a darlington transistor and integral suppression diode for inductive load. Isolated input channels 0 ~ 15 are designed into group A and channels 16 ~ 31 are designed into group B. Isolated output channels are designed into group C and group D. The power supply of the input port may use the external power or the power from the PC side using DC/DC converter. The power supply of the output port should use the external power. This interface board is easily installed in any PC. The board interface to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. The ISO-P32C32 has one 37-pin D-Sub Connector and one 40-pin male header. The 40-pin to DB-37 flat cable is used to fix with the case. The user can connect the digital signal through the second D-Sub connector . Each D-Sub connector contains 16 input channels and 16 output channels.
Applications
- Factory Automation
- Product Test
- Laboratory Automation
- Security Control
Click to view the Introduction of https://mctt.vn/isa-icp-das
Specifications
| Hardware |
| Connector |
Female DB37 x 1
40-pin box header x 1 |
| Digital Input |
| Channels |
32 |
| Type |
Dry + Wet Contact
Photocoupler |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
Dry: Close to GND
Wet: 9 ~ 24 V(Min. 7 V ; Max. 30 V) |
| OFF Voltage Level |
Dry: Open
Wet: 0 ~ 1 V |
| Response Speed |
4 kHz (Typical) |
| Trigger Mode |
Static Update |
| Isolation |
3750 Vrms (Using external power)
3000 Vrms (Using internal power) |
| Digital Output |
| Channels |
32 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink (NPN) |
| Operation Mode |
Static Update |
| Load Current |
100 mA/+30 V for each channel @ 100% duty |
| Response Speed |
4 kHz (Typical) |
| Isolation |
3750 Vrms |
| PC Bus |
| Type |
ISA |
| Data Bus |
8-bit |
| Power |
| Consumption |
600 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
115 x 163x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ISO-P32C32 CR |
ISA Bus, 32-ch Isolated Digital I/O Board (RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors |
