Card ISA 32 kênh DI + 32 kênh DO ICP DAS ISO-P32S32W CR

Chia sẻ:
Mã sản phẩm: ISO-P32S32W
Thương hiệu: ICP DAS
Tình trạng:

ISA Bus, 32-ch Isolated DI and 32-CH Isolated Open Collector (Sink, NPN) DO Board (8-ch for 500 mA and 24-ch for 100 mA)

Liên hệ
Mô tả

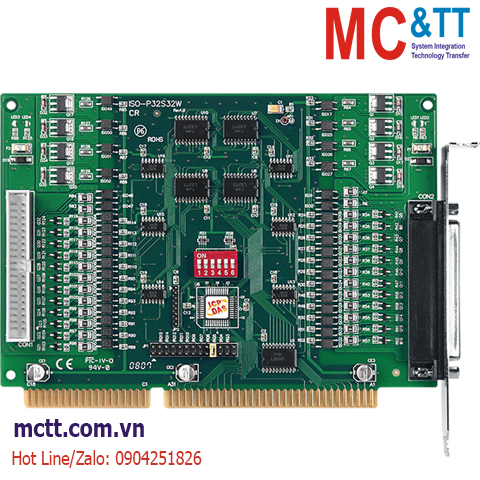

Card ISA 32 kênh DI + 32 kênh DO ICP DAS ISO-P32S32W CR

Features

  • 32-CH Isolated DI
  • 32-CH Isolated DO
  • Isolation Voltage: 3750 Vrms (Using external power)
  • DC/DC converter build-in
  • Interrupt handling
  • Two Interrupt source, channel 0 and channel 16
  • Open Collector: 500 mA (8-channel), 100 mA (24-channel), Current Sinking, NPN

Introduction

ISO-P32S32W has 32 channels of Isolated DI and 32 channels of Isolated open-collector output board (8-channel for 500 mA and 24-channel for 100 mA current sinking output, NPN), arranged into four isolated banks. Each input channel use a photo-coupler to isolate the card and computer from external signal. Each DO offers a NPN transistor and integral suppression diode for inductive load. ISO-P32S32W requires external power to drive the D/I and D/O ports.

This interface board is easily installed in any PC. The board interface to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. ISO-P32S32W has one 37-pin D-Sub connector and one 40-pin male header. The 40-pin to DB-37 flat cable is used to fix with the case. The user can connect the digital signal through the second D-Sub connector. Each D-Sub connector contains 16 input channels and 16 output channels.

Applications

  • Factory Automation
  • Product Test
  • Laboratory Automation
  • Security Control

Click to view the Introduction of https://mctt.vn/isa-icp-das

Specifications

Hardware
Connector Female DB37 x 1
40-pin box header x 1
Digital Input
Channels 32
Type Wet Contact
Photocoupler
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level 9 ~ 24 V
OFF Voltage Level 0 ~ 1 V
Response Speed 4 kHz (Typical)
Trigger Mode Static Update
Isolation 3750 Vrms (Using external power)
Digital Output
Channels 32
Type Open Collector
Sink/Source (NPN/PNP) Sink (NPN)
Operation Mode Static Update
Load Current 500 mA for one high driving channel @ 100% duty
500 mA for all high driving channels @ 100% duty
(The GND pins all must be connected with GND of External Power)
100 mA for one low driving channel @ 100% duty
100 mA for all low driving channels @ 100% duty
(The GND pins all must be connected with GND of External Power)
Response Speed 4 kHz (Typical)
Isolation 3750 Vrms (Using external power)
PC Bus
Type ISA
Data Bus 8-bit
Power
Consumption 600 mA @ +5 V
Mechanical
Dimensions (mm) 115 x 163 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ISO-P32S32W     CR  ISA Bus, 32-ch Isolated DI and 32-ch Isolated Open Collector (Sink, NPN) DO Board (RoHS)
(8-ch for 500 mA and 24-ch for 100 mA)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors.
