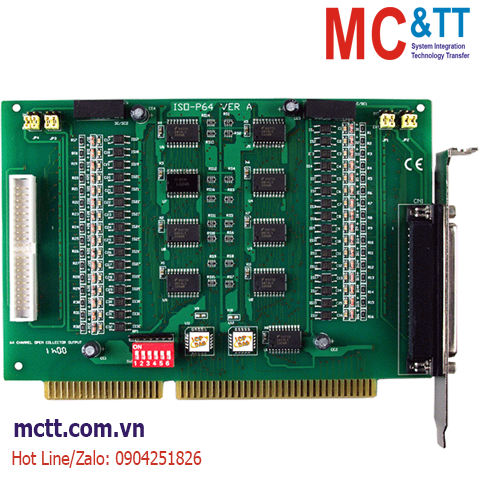

Card ISA 64 kênh đầu vào số DI ICP DAS ISO-P64 CR
Features
- 64-channel Isolated DI
- DC/DC converter build-in
- Four isolated bank
- Built-in DC/DC converter with 3000 VDC isolation
- Interrupt handling
- Interrupt source : channel 0 and channel 16
- 3750 Vrms photo-isolation protection
Introduction
The ISO-P64 has 64-channel isolated DI board, arranged into four isolated banks. Each input channel use a photo-coupler input which allows either internal power supply or external power selected by jumper. Isolated input channels 0~15 are designed into group A, channels 16~31 are designed into group B, Isolated input channels 32~47 are designed into group A, channels 48~63 are designed into group B. The power supply of the input port may use the external power or the power from the PC side using DC to DC converter. The board interface to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. The ISO-P64 has one 37-pin D-sub connector and one 40-pin header. The 40-pin to D-sub 37 flat cable is used to fix with the case. The user can connect the digital signal through the second D-sub connector. Each D-sub connector contains 16 inputs channel and 16 output channel.
Applications
- Factory Automation
- Product Test
- Laboratory Automation
- Security Control
Click to view the Introduction of https://mctt.vn/isa-icp-das
Specifications
| Hardware |
| Connector |
Female DB37 x 1
40-pin Box header x 1 |
| Digital Input |
| Channels |
64 |
| Type |
Dry + Wet Contact
Photocoupler |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
Dry: Close to GND
Wet: 5 ~ 15 V (Max 24 V) |
| OFF Voltage Level |
Dry: Open
Wet: 0 ~ 1 V |
| Response Speed |
4 kHz (Typical) |
| Trigger Mode |
Static Update |
| Isolation |
3750 Vrms (Using external power) |
| PC Bus |
| Type |
ISA |
| Data Bus |
8-bit |
| Power |
| Consumption |
400 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
115 x 175 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ISO-P64 CR |
ISA Bus, Isolated 64-chanel DI Board (RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors |
