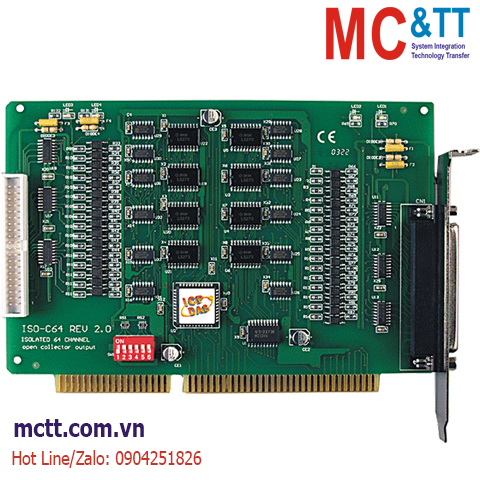

Card ISA 64 kênh đầu ra số DO ICP DAS ISO-C64 CR
Features
- 64-channel Isolated DO / Open-collector
- Four isolated bank
- 3750 Vrms isolation voltage
Introduction
The ISO-C64 has 64 channels of Isolated DOs, arranged into four isolated banks. Each DO offers a darlington transistor and integral suppression diode for inductive load. Isolated output channels are designed into group A, B, C, D. The power supply of the output port should be use the external power. This board interface to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages.
Applications
- Factory Automation
- Product Test
- Laboratory Automation
- Security Control
Click to view the Introduction of https://mctt.vn/isa-icp-das
Specifications
| Hardware |
| Connector |
Female DB37 x 1
40-pin box header x 1 |
| Digital Output |
| Channels |
64 |
| Type |
Sink(NPN), Open Collector |
| Operation Mode |
Static Update |
| Load Current |
100 mA/+30 V for each channel @ 60% duty |
| Response Speed |
4 kHz (Typical) |
| Isolation |
3750 Vrms |
| PC Bus |
| Type |
ISA |
| Data Bus |
8-bit |
| Power |
| Consumption |
500 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
15 x 178 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ISO-C64 CR |
ISA Bus, Isolated 64-ch DO Board (RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors |
