Card ISA 8 kênh DI + 8 kênh Relay ICP DAS P8R8DIO CR

Chia sẻ:
Mã sản phẩm: P8R8DIO
Thương hiệu: ICP DAS
Tình trạng:

ISA Bus, 8-ch Isolated DI & Relay Output Board

Liên hệ
Mô tả

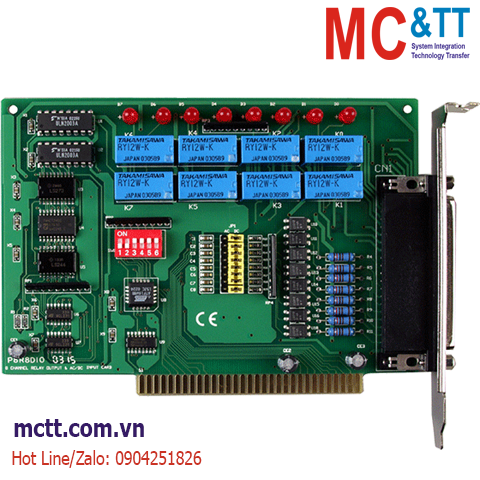

Card ISA 8 kênh DI + 8 kênh Relay ICP DAS P8R8DIO CR

Features

  • Relay output Channel
  • Isolated DI channels
  • AC/DC signal input ; AC signal input with filter
  • Connector pin assignment is compatible to 725 series
  • Power Requirements : 200 mA @ +5 V (max.) ; 260 mA @ +12 V (max.)
  • LED indicator for each relay output state

Introduction

The P8R8 DIO is an 8 isolated input and 8 relay output interface board designed for control and sensing applications. This interface board is easily installed in any PC/AT/XT or compatible computer. The P8R8 DIO Provides 8 electromechanical relay outputs and 8 Isolated inputs. The P8R8 DIO can be used in various applications including load switching, external switching, contact closure, etc.

Applications

  • Factory Automation
  • Product Test
  • Laboratory Automation
  • Security Control

Click to view the Introduction of https://mctt.vn/isa-icp-das

Specifications

Hardware
Connector Female DB37 x 1
Digital Input
Channels 8
Type Wet Contact
Photocoupler
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz)
OFF Voltage Level AC/DC 0 ~ 1 V
Response Speed Without Filter: 45 kHz (Typical)
With Filter: 0.05 kHz(Typical)
Trigger Mode Static Update
Isolation 5000 Vrms
Relay Output
Channels 8
Type 4 SPDT, 4 SPST
Contact Rating AC/DC:120 V@0.3 A
DC: 24 V@1 A
Operate Time 5 ms (typical)
Release Time 5 ms (typical)
Electrical Endurance 100,000 ops.
Mechanical Endurance 100,000 ops.
PC Bus
Type ISA
Data Bus 8-bit
Power
Consumption 160 mA @ +5 V
150 mA @ +12 V
Mechanical
Dimensions (mm) 150 x 97 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

P8R8DIO     CR  ISA Bus, 8-ch Isolated D/I and Relay Output (RoHS)
Includes one CA-4002 D-Sub connector
