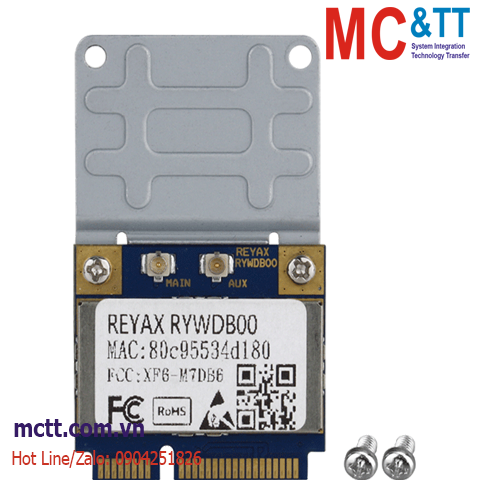

Card PCIe thu phát Wi-Fi AP ICP DAS RYWDB00 CR
Feature
- Compliant to single-spatial stream IEEE 802.11 a/b/g/n with dual band (2.4 and 5 GHz) support
- Support for 20 MHz and 40 MHz channel bandwidths
- Transmit power up to +18 dBm with integrated PA
Receive sensitivity as low as -96.5 dBm
Introduction
RYWDB00 is a wireless network expansion card that provides a comprehensive multi-protocol wireless connectivity solution, including 802.11 a/b/g/n (2.4 GHz and 5 GHz), and supports mini PCIe slot (signal type USB2.0 HS).
Application
Specifications
| Wi-Fi |
| Transmission Distance (LoS) |
50 meters (LOS) |
| Standard |
IEEE 802.11a/b/g/n |
| Encryption |
Open/WPA/WPA2 |
| Data Transmission Rate |
802.11b: 1, 2, 5.5, 11 Mbps
802.11g/a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS0 to MCS7 |
| Client |
Max. 16 Clients (AP mode) |
| Channels |
2.4GHz: 1~13
5 GHz: 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,149,153,157,161,165 |
| Power |
| Input Range |
+3.1 VDC ~ +3.5 VDC |
| Consumption |
1.5W ( 0.45 A @ 3.3 VDC) |
| Mechanical |
| Dimensions (mm) |
30.0 x 26.8 x 3.0 (W x L x H) |
| Environment |
| Operating Temperature |
-40 ~ +85 °C |
Download
Datasheet
Documents
Ordering Information
| RYWDB00 CR |
Wi-Fi wireless expansion card (RoHS) (Asia Only) |
