Module nhúng AP không dây công nghiệp Dual-Frequency Wi-Fi 6 3Onedata IAP3600Exi-2225-2GS4GT-SMA-P12_48

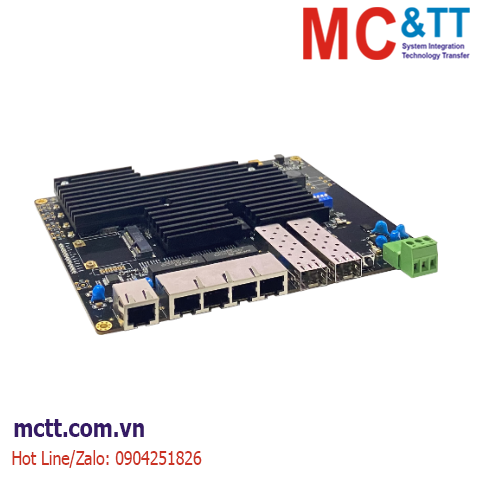

IAP3600Exi-2225-2GS4GT-SMA-P12_48 is a Gigabit safety dual-frequency Wi-Fi6 industrial wireless AP for mine. This product provides Gigabit copper port (LAN), Gigabit SFP slot (LAN/WAN), 2.4G antenna interface and 5G antenna interface, supports embedded installation, and can meet the needs of different application sites.

The management system supports route, AP, bridge, client and other work modes; Support IEEE802.11a/b/g/n/ac/ax wireless technology, the wireless rate of the whole device is up to 1774.5Mbps; The device supports wireless encryption methods such as WPA/WPA2/WPA3, and has various security policies such as SSID hiding, wireless user isolation, IP address filtering, MAC address filtering, port forwarding, port redirection, ARP binding, DMZ setting, etc. Support virtual AP, that is, one AP device supports multiple SSIDs.

RESET button can reboot the device and restore factory defaults. When the device temperature is too higher, ALM indicator would be blinking and send alerts for quick troubleshooting on the scene. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in wireless communication, wireless video transmission and other WiFi coverage system design in mining system and provides reliable and rapid solutions for users’ Ethernet device connection.

Tính năng

  • Support 2 Gigabit SFP slots (LAN/ WAN port), 4 Gigabit copper ports(LAN port), 2 2.4G WiFi antennas and 2 5G Wi-Fi antennas
  • Support Wi-Fi6 (802.11ax), which can improve system capacity and concurrent access, and reduce transmission delay.
  • Support multiple network modes such as routing, AP, bridge and client mode.
  • Adopt patented SW-Ring technology and support multiple ring functions. Automatic recovery time from network failure is <20ms
  • Support power input of 12~48VDC (the input range of safety power is 12~24VDC)
  • Support -40~75℃ wide operating temperature range
  • Conform to the features of intrinsic safety

Thông số kỹ thuật

Standard & Protocol

IEEE 802.3 for 10Base-T

IEEE802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE 802.3z for 1000Base-X

IEEE802.11a/b/g/n/ac/ax for WLAN

IEEE802.11i for wireless security

IEEE802.11r for fast roaming

IEEE802.11e for WWM

IEEE802.1Q for VLAN

Working Mode

Routing mode (WAN:PPPoE dial-up, static IP, DHCP dynamic IP acquisition)

AP mode (LAN: static IP, DHCP dynamically acquiring IP)

Bridge mode (connection: WDS bridge, universal bridge; point-to-point, roaming)

Client mode (connection: WDS bridge, universal bridge, wireless NAT; point-to-point, roaming)

WLAN

WAP/WAP2/WAP3 personal/enterprise edition encryption mode, hidden wireless SSID, wireless user isolation, wireless transmission power adjustment, maximum user limit, packet segmentation and RTS threshold, China/US wireless channel, WMM

Management

Intranet settings, extranet settings, wireless settings, AC management, SNMP management, roaming agent, user settings, system upgrade, timed restart, profile management, system log, wireless user list, and Wi-Fi real-time traffic monitoring

Security Policy

Wireless user black/white list, wireless user event notice, IP filtering, MAC filtering, port forwarding, port redirection, ARP binding, DMZ setting

Redundancy Technology

SW-Ring

Routing/Switching

Static routing (routing mode, wireless NAT), VLAN

Location Service

Wireless probe

Troubleshooting

Network Detection

Time Management

NTP Client

Radio Frequency

802.11B/g/n: 2.412GHz~2.4835GHz

802.11Ac/n/a: 5.18GHz~5.825GHz

RF power output: 20dBm

Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

Receiving Sensitivity

802.11b:-87dBm@1Mbps, -76dBm@11Mbps

802.11g/a:-82dBm@6Mbps, -65dBm@54Mbps

802.11n:-82dBm@MCS0, -64dBm@MCS7

802.11ac:-82dBm@MCS0, -57dBm@MCS9

802.11ax:-82dBm@MCS0, -52dBm@MCS11

Transmitting Power

802.11b:23dBm@1Mbps, 20dBm@11Mbps

802.11g/a:23dBm@6Mbps, 20dBm@54Mbps

802.11n:23dBm@MCS0, 18dBm@MCS7

802.11ac:23dBm@MCS0, 18dBm@MCS9

802.11ax:23dBm@MCS0, 18dBm@MCS11

Interface

Gigabit copper port: 4 10/100/1000Base-T(X) RJ45 port, LAN port

Gigabit SFP: 2 1000Base-X SFP slot, LAN/WAN port

Antenna interface:

- Two 2.4G antenna interfaces, SMA-k type (Female)

- Two 5G antenna interfaces, SMA-k type (Female)

- 1 UWB antenna interface (reserved)

Console port: CLI command management port(RS-232), RJ45

Power Supply

12~48VDC, the input range of safety power is 12~24VDC, anti-reverse connection and slow start are supported, and 3-pin 5.08mm pitch terminal blocks are used.

Indicator

Power indicator, running indicator, alarm indicator, 2.4G indicator, 5.8G indicator, WLAN bridge signal strength indicator, UWB indicator (reserved), interface indicator; provides external pin of indicator

Power Consumption

Temperature

Transmitting Power(dbm)

Voltage

(VDC)

Peak Value

(A)

Full Mean Load

(W)

Full Peak Load

(W)

Normal Temperature

(25℃)

20

12

1.299

14.3

16.2

18

0.885

14

16.6

24

0.686

14.2

16.8

27

12

1.558

15

20

18

1.041

14.8

21.3

24

0.813

14.4

21.3

High temperature

(75℃)

20

12

1.376

14.6

17.9

18

0.909

14.8

23

24

0.717

14.8

18.4

27

12

1.627

16.2

21.7

18

1.099

15.9

23.2

24

0.846

15.9

23.6



Working Environment

Operating temperature: -40~75℃

Storage temperature:-40~85℃

Relative humidity: 5%~95% (no condensation)

Physical Characteristic

Shell: null

Installation: embedded mounting

Dimension (W x H x D): 180mm×15.1mm×145mm

Authentication

CE, FCC, RoHS

Thông tin đặt hàng

Available Models

Antenna Interface

Gigabit

SFP

Gigabit

Copper Port

Power Supply

2.4G

5G

UWB (Reserved)

IAP3600Exi-2225-2GS4GT-SMA-P12_48

2

2

1

2

4

12~48VDC

Optional Accessories

Type

P/N

Gain (dBi)

Quantity (pcs)

Remark

2.4G omnidirectional antennass

3005040006

5

2

Optional

5.8G omnidirectional antennas

3005040057

5

2

Optional

Magnetic base connecting line for sucker

3005040115

4

Optional
