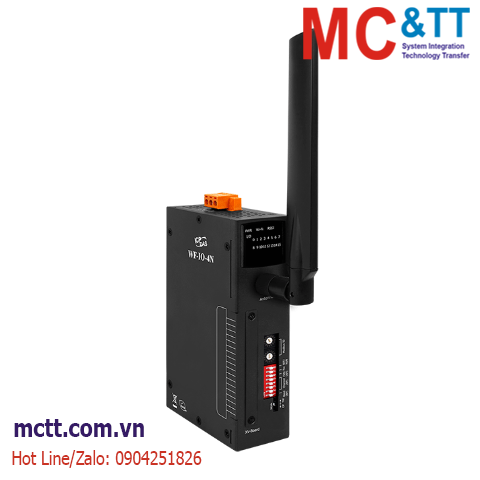

Module Wi-Fi Modbus TCP & MQTT 1 khe cắm I/O ICP DAS WF-IO-4N CR
Feature
- Support Wi-Fi 2.4/5 GHz
- Compatible with IEEE 802.11a/b/g/n standards
- Support AP and STA mode
- Support WEP, WPA, WPA2 and WPA3 wireless encryption
- Support Modbus/TCP&UDP and MQTT Protocols
- One XV I/O board can be installed
- Support Web-based configuration
- Bulit-in WDT
Introduction
The WF-IO-4N is a dual-band Wi-Fi universal I/O module designed to easily connect and control external devices over Wi-Fi networks. The WF-IO-4N supports both 2.4 GHz and 5 GHz Wi-Fi bands and adopting Modbus/TCP&UDP and MQTT Protocols, WF-IO-4N can be seamlessly integrated into smart factories, automation control, remote monitoring, and IoT applications. The key feature of WF-IO-4N lies in its modular I/O expansion design. The main unit provides a standardized interface that can be paired with different XV I/O expansion boards, allowing flexible combinations of digital input, digital output, analog input, and relay control. Users can quickly reconfigure or expand I/O specifications according to project needs without replacing the WF-IO-4N module, reducing costs while enhancing system flexibility. In addition, the WF-IO-4N supports wireless firmware updates and features a web-based configuration interface, making installation and maintenance more convenient—no extra software tools required. Whether for single-device control or large-scale deployment, WF-IO-4N delivers a stable, secure, and highly scalable solution. With minimal hardware investment, it empowers users to meet diverse application scenarios, making it the ideal core for smart control and IoT applications.
Application
- Wi-Fi Application Architecture
- Pair Connection – 1-to-1 Architecture
- Pair Connection – 1 to multiple architectures
Specifications
| LED Indicators |
| Status |
PWR, Wi-Fi, RSSI |
| Wi-Fi |
| Transmission Distance (LoS) |
50 meters (LOS) |
| Standard |
IEEE 802.11 a/b/g/n |
| RX Sensitivity |
-94.5 dBm @ 2.4GHz
-89 dBm @ 5 GHz |
| Output Power |
16 dBm @ 2.4GHz
15.1 dBm @ 5 GHz |
| Mode |
Access Point (AP) & Station (STA) |
| Frequency |
2.4 / 5 GHz |
| Protocol |
Modbus/TCP, Modbus/UDP, MQTT |
| Encryption |
Open, WPA/WPA2-PSK, WPA3-PSK |
| Client |
Max. 4 Clients (AP mode) |
| Antenna |
Omni-Directional
RP-SMA Male (Plug)
3 dBi @ 2.4 GHz
5.5 dBi @ 5 GHz |
| I/O Expansion |
| I/O Type |
plug-in, XV-board |
| Slots |
1 |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Consumption |
1.5 W @ 24 VDC |
| Mechanical |
| Casing |
Metel |
| Dimensions (mm) |
158 mm x 38 mm x 97 mm |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25℃ ~ +75℃ |
| Storage Temperature |
-30℃ ~ +80℃ |
| Humidity |
10 to 90% RH (Non-condensing) |
Download
Datasheet
Documents
Ordering Information
| WF-IO-4N CR |
Wi-Fi Wireless Module with one I/O Slot (RoHS) |
