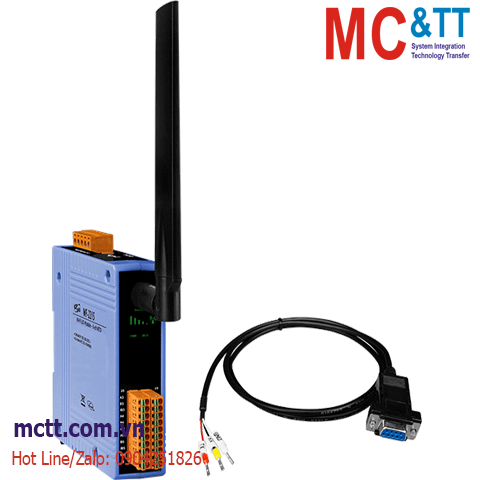

Module Wi-Fi Modbus TCP 6 kênh RTD ICP DAS WF-2215 CR
Feature
- Compatible with IEEE 802.11a/b/g/n standards
- Support WEP, WPA and WPA2 wireless encryption
- Support Modbus TCP protocols
- Built-in Watchdog
- Built-in I/O
-RTD: 6 Channels
Introduction
The WF-2215 is a dual bands 2.4/5 GHz Wi-Fi interface and 6-channel RTD input module for long-distance temperature measurement and features automatic compensation for three-wire RTD sensor. With the popularity of 802.11 network infrastructure, the WF-2215 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2215 also supports Modbus TCP protocol and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.
Application
Specifications
| Isolation |
| Intra-module Isolation |
Power: 3000 VDC |
| Wi-Fi |
| Transmission Distance (LoS) |
50 meters (LOS) |
| Standard |
IEEE 802.11 a/b/g/n |
| RX Sensitivity |
-95 dBm @ 2.4 GHz
-90 dBm @ 5 GHz |
| Output Power |
15 dBm (Max.) |
| Mode |
Infrastructure & Limit-AP |
| Encryption |
WEP, WPA and WPA2 |
| Antenna |
Omni-Directional 3 dBi @ 2.4 GHz 5.5 dBi @ 5 GHz |
| Analog Input |
| Channels |
6 |
| Type |
RTD |
| Sensor Type |
Pt100, Pt1000, Ni120, Cu50, Cu100, Cu1000 |
| Resistance Measurement |
3.2 kΩ Max. |
| Resolution |
16-bit |
| Accuracy |
±0.05% of FSR |
| Sampling Rate |
12 Hz (Total) |
| Overvoltage Protection |
+120 VDC |
| Individual Channel Configuration |
Yes |
| Open Wire Detection |
Yes |
| 3-wire RTD Lead Resistance Elimination |
Yes |
| Power |
| Reverse Polarity Protection |
+10 VDC ~ +30 VDC |
| Consumption |
1.44 W |
| Mechanical |
| Dimensions (mm) |
33 x 127 x 107 (W x L x H)
(Without antenna) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| WF-2215 CR |
Wi-Fi I/O Module with 6-ch RTD Input (Asia Only) (RoHS)Includes ANT-225-5 Antenna and CA-0910 Cable |
