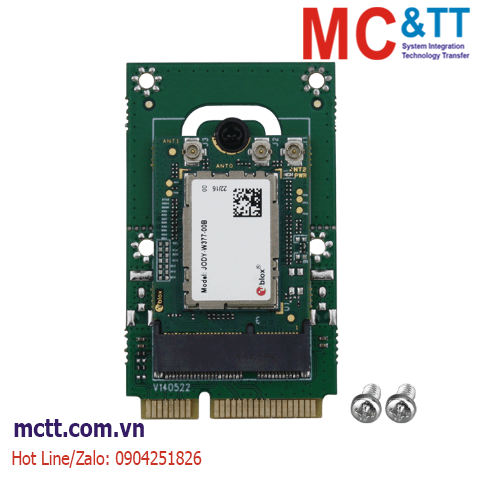

Card M.2 key E (2230) thu phát Wi-Fi dual band (2.4 and 5 GHz) ICP DAS M2-JODY-W377-00C CR
The M2-JODY-W377-00C is a wireless network expansion card that provides a comprehensive multi-protocol wireless connectivity solution, including 802.11 a/b/g/n/ac/ax (2.4 GHz and 5 GHz), supporting M.2/mini PCIe (via adapter) slots with PCIe signal type
Feature
- Compliant to IEEE 802.11 a/b/g/n/ac/ax with dual band (2.4 and 5 GHz) support
- Supports Wi-Fi 20, 40 and 80 MHz channel bandwidths
- Supports WPA/WPA2/WPA3 encryption
- Transmit power up to +19 dBm with integrated PA
- Receive sensitivity as low as -97 dBm
Application
Specifications
| Wi-Fi |
| Standard |
IEEE 802.11a/b/g/n/ac/ax |
| Encryption |
Open/WPA/WPA2/WPA3 |
| Data Transmission Rate |
802.11b: 1, 2, 5.5, 11 Mbps
802.11g/a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS0 to MCS15 and MCS32
802.11ac: MCS0~MCS9
802.11ax: MCS0~MCS11 |
| Client |
Max. 64 Clients (AP mode) |
| Channels |
2.4GHz: 1~13
5 GHz:36~165 |
| Power |
| Input Range |
+3.135 VDC ~ +3.465 VDC |
| Consumption |
6.6 W ( 2 A @ 3.3 VDC) |
| Mechanical |
| Dimensions (mm) |
22.0 x 30.0 x 4.2 (W x L x H) |
| Environment |
| Operating Temperature |
-40 ~ +85 °C |
Download
Datasheet
Documents
Ordering Information
| M2-JODY-W377-00C CR |
Wi-Fi wireless expansion card (RoHS) |
