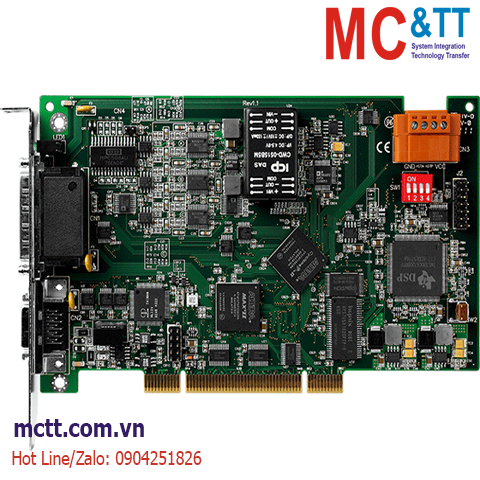

Card PCI DSP-based Professional Motion Development Kit ICP DAS PMDK CR

Features

  • DSP-based control card with PCI interface
  • Capable of 6-axis motion control
  • Pulse Output Rate: 4 MHz (Max.)
  • Maximum Encoder Input Frequency: 12 MHz
  • High-speed position latching and comparing functions
  • Home, positive and negative limit sensors for each axis
  • Manual-pulse-generator (MPG) interface
  • Expandable remote I/O: 128 DI & 128 DO via a two-wire FRnet interface

Introduction

The PMDK is a DSP-based PCI motion control card suitable for the development of professional motion control applications and can be used with any IPC that has a 5 V PCI bus. A wide range of applications can be implemented thanks to the integration of a high-speed DSP (TI C672x), an FPGA (Field Programmable Gate Array), and I/O buffering circuitry. A diverse array of I/O interfaces are incorporated into the PMDK, including 6 channels for pulse I/O, 6 channels for AI/AO, and a variety of DI/DO channels. The card also includes a single two-wire FRnet port that can be used to remotely control up to 128 DI and 128 DO channels, which, together with the numerous software samples that are provided, allows the rapid development of custom programs.

The PMDK enables users to implement a variety of cost-effective motion control functions, including multi-axis linear and circular interpolation with acceleration/ deceleration processing. A variety of synchronous actions are also possible through programming. The included sample software can be used to design custom motion functions which can then be appended to the original motion command set. DSP programs are developed based on a real-time kernel (DSP/BIOS), meaning that motion status, FRnet I/O status, and the status of other I/O interfaces can still be monitored while driving operations are being performed, and, as the loading on the CPU is very low, one or more motion cards can be used on a single IPC. If the PMDK is to be used for signal processing, users can refer to a range of samples provided by ICP DAS illustrating how to implement FFT, FIR, and IIR, together with the resources provided by TI.

In the future, ICP DAS will be providing a wider library of functions and examples that will further reduce the level of programming required by users in order to implement their custom applications. In summary, the PMDK is a highly cost-effective solution for users intending to develop custom applications for motion control, process control, I/O logic control, digital processing, and applications in a wide range of other domains.

Applications

  • Semiconductor Manufacturing
  • Component Inspection
  • Manufacturing Quality Control
  • Food and Beverage Inspection
  • Microscopy and Medical Imaging
  • Biometrics Applications
  • X-Y-Z Table
  • Fix-pitch Stamping Machinery
  • Transfer Machinery
  • Spinner
  • Load/Unload

Click to view the Introduction of https://mctt.vn/motion-control-icp-das

Specifications

Hardware
Connector 68-pin SCSI-II and 20-pin SCSI-II
General
No. of Axes 6
Servo Update Rate User Programmable
Command Type Pulse command, V command
Axis I/O
Servo Interface Output SVON, ALM_RST, ERC
Latch Input High-Speed 5 V or 24 V NPN
Mechanical Switch Input Home, LMT+/-, NHOME, EMG
Position Compare Output High-Speed 5 V TTL
or 24 V open collector
Servo Interface Input INP, ALM, RDY
Encoder Input
Mode A/B Phase, Up/Down
Counting Rate 12 MHz
Counter Width 32-bit
Pulse Output
Mode CW/CCW, PULSE/DIR
Rate 4 MHz (Max.)
Digital Input
Channels Expandable: 128 DI
Isolation (with DN-8368)
2500 Vrms optical isolation
Digital Output
Channels Expandable: 128 DO
Isolation (with DN-8368)
2500 Vrms optical isolation
PC Bus
Type Universal PCI Bus
Power
Consumption 1.5A
Environment
Operating Temperature -20 ~ +75°C
Storage Temperature -30 ~ +85°C
Humidity 5 ~ 85% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

PMDK  Universal PCI Bus, DSP-based Professional Motion Development Kit
