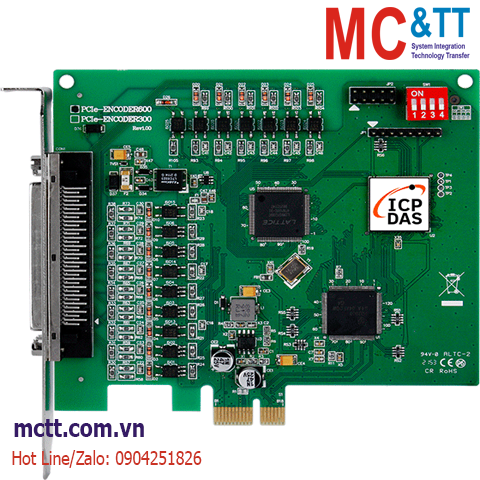

Card PCI Express 3-axis Encoder Input ICP DAS PCIe-ENCODER300 CR
Features
- 3-axis encoder counter
- True 32-bit counter
- Encoder Counting Rate: 4 MHz (Max.)
- Third-order internal digital filter
- Counting Mode: Quadrant, CW/CCW, PULSE/DIR
- A+, A-, B+, B-, C+, C- inputs
- Programmable reset counter function
- Index (C channel) reset counter function
- Hardware reset (HR1 ~ HR6), reset counter function
- 68-pin SCSI-II connector
Introduction
The PCIe-ENCODER300 contains a 3-axis encoder counterand each axis has a 32-bit true counter with a maximum encoder counting rate of 4 MHz. The counting mode can be selected from three types: 1. Quadrant mode, 2. CW/CCW mode, and 3. PULSE/ DIR mode. There are also three 3 kinds of counter reset modes provided: 1. Register Reset, 2. Index Reset, and 3. Hardware Reset. The "Index Reset" mode resets by using a C+/C- channel, which will reset the counter on each revolution. The "Hardware Reset" mode resets the counter using an external pin (HR1 ~ HR6). The HR1 to HR6 pins can also be used as digital input. The PCIe-ENCODER300 also provides 8-ch digital outputs. 2500 Vrms photo-couplers are used to isolate the digital I/O to prevent high voltages from affecting the system. Device drivers and function libraries for DOS, Windows 7, and Windows XP/2000 are provided.
Applications
- Semiconductor Manufacturing
- Component Inspection
- Manufacturing Quality Control
- Food and Beverage Inspection
- Microscopy and Medical Imaging
- Biometrics Applications
- X-Y-Z Table
- Fix-pitch Stamping Machinery
- Transfer Machinery
- Spinner
- Load/Unload
Click to view the Introduction of https://mctt.vn/motion-control-icp-das
Specifications
| Software |
| OS Support |
Windows 7/10 32/64-bit
Windows XP/2000 32-bit |
| SDK |
DOS 6.2 , Linux 2.6
Labview 8.5 and above |
| Hardware |
| Connector |
68-pin SCSI-II Female |
| Encoder Input |
| Mode |
Quadrant, CW/CCW, PULSE/DIR |
| Counting Rate |
4 MHz (Max.) |
| Pulse Output |
| Counter Width |
32-bit |
| Digital Input |
| Channels |
6 |
| Isolation |
2500 Vrms optical isolation |
| Digital Output |
| Channels |
8 |
| Isolation |
2500 Vrms optical isolation |
| PC Bus |
| Type |
PCI Express x 1 |
| Power |
| Consumption |
3.3 V @ 500 mA |
| Mechanical |
| Dimensions (mm) |
120.4 mm x 90.8 mm |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +80°C |
| Humidity |
5 ~ 85% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| PCIe-ENCODER300 CR |
PCI Express Bus, 3-axis Encoder Input Card (RoHS) |
