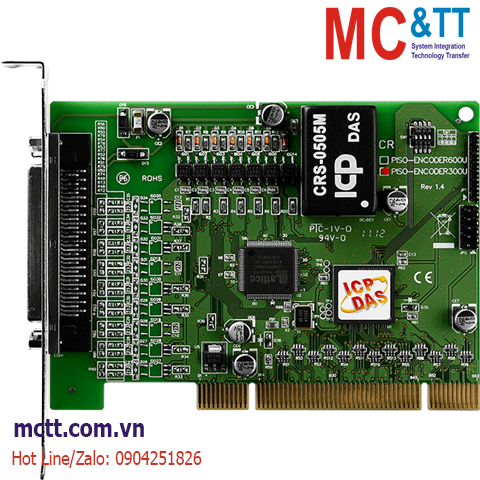

Card PCI 3-axis Encoder Input ICP DAS PISO-ENCODER300U CR

Chia sẻ:
Mã sản phẩm: PISO-ENCODER300U
Thương hiệu: ICP DAS
Tình trạng:

PCl Bus, 3-axis Encoder Input Card

Liên hệ
Mô tả

Card PCI 3-axis Encoder Input ICP DAS PISO-ENCODER300U CR

Features

  • Universal PCI bus
  • 3-axis encoder counter
  • True 32-bit counter
  • Encoder Counting Rate: 4 MHz (Max.)
  • Third-order internal digital filter
  • Counting Mode: Quadrant, CW/CCW, PULSE/DIR
  • A+, A-, B+, B-, C+, C- inputs
  • Programmable reset counter function
  • Index (C channel) reset counter function
  • Hardware reset (HR1 ~ HR6), reset counter function
  • 68-pin SCSI-II connector

Introduction

The PISO-ENCODER300U contains a 3-axis encoder counter and each axis has a 32-bit, true counter with a Encoder Counting Rate of 4 MHz (Max.). The counting mode can be selected from three types: 1. Quadrant mode, 2. CW/CCW mode, and 3. PULSE/ DIR mode. There are also three 3 kinds of counter reset modes provided: 1. Register Reset, 2. Index Reset, and 3. Hardware Reset. The "Index Reset" mode resets by using a C+/C- channel, which will reset the counter on each revolution. The "Hardware Reset" mode resets the counter using an external pin (HR1 ~ HR6). The HR1 ~ HR6 pins can also be used as digital input. The PISO-ENCODER300U also provides 8-ch digital outputs. 2500 Vrms photo-couplers are used to isolate the digital I/O to prevent high voltages from affecting the system. Device drivers and function libraries for DOS, Windows 7 and Windows XP/2000 are provided.

Applications

  • Semiconductor Manufacturing
  • Component Inspection
  • Manufacturing Quality Control
  • Food and Beverage Inspection
  • Microscopy and Medical Imaging
  • Biometrics Applications
  • X-Y-Z Table
  • Fix-pitch Stamping Machinery
  • Transfer Machinery
  • Spinner
  • Load/Unload

Click to view the Introduction of https://mctt.vn/motion-control-icp-das

Specifications

Software
OS Support Windows 7/10 32/64-bit
Windows XP/2000 32-bit
SDK DOS 6.2 , Linux 2.6
Labview 8.5 and above
Hardware
Connector 68-pin SCSI-II Female
General
No. of Axes 3
Encoder Input
Mode Quadrant, CW/CCW, PULSE/DIR
Counting Rate 4 MHz (Max.)
Pulse Output
Counter Width 32-bit
Digital Input
Channels 6
Isolation 2500 Vrms optical isolation
Digital Output
Channels 8
Isolation 2500 Vrms optical isolation
PC Bus
Type Universal PCI bus
Power
Consumption +5 V @ 500 mA
Mechanical
Dimensions (mm) 120.4 mm x 90.8 mm
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +80°C
Humidity 5 ~ 85% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

PISO-ENCODER300U     CR  Universal PCI Bus, 3-axis Encoder Input Card (RoHS)
Includes: CA-SC68, SCSI-II 68-pin Male Connector (Solder Type) with Cover
