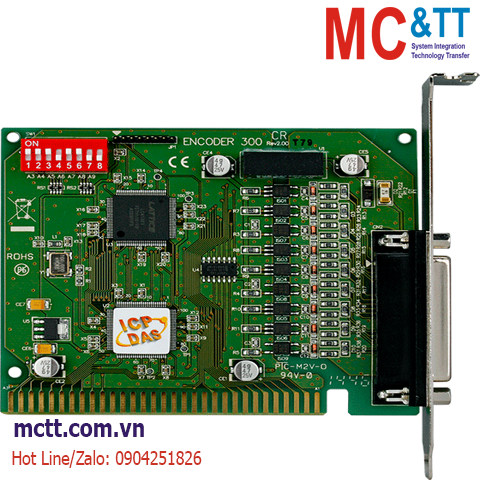

Card ISA 3-axis Encoder Interface ICP DAS ENCODER300 CR

Chia sẻ:
Mã sản phẩm: ENCODER300
Thương hiệu: ICP DAS
Tình trạng:

ISA Bus, 3-axis Encoder Interface Card

Liên hệ
Mô tả

Card ISA 3-axis Encoder Interface ICP DAS ENCODER300 CR

Features

  • Accepts Inputs from Incremental or Quadrature Encoders
  • 3 independent axes
  • Max. Quadrature Input Frequency: 1 MHz
  • Counts per Encoder Cycle: X1, X2, X4 (Software selectable)
  • Encoder Input Modes: Quadrature , Up/Down , Pulse/Direction

Introduction

The ENCODER300 is a 3-axis quadrature encoder interface board for IBM PC/AT bus-compatible devices. Phase 0, phase 90 and index pulse inputs are provided for each encoder. Inputs may be single ended (A, B or C) or differential (A+, A-, B+, B-, C+ or C-). Power and ground connections are also provided for use by the encoder if needed. Inputs are conditioned by a four-stage digital filter, and the maximum input rate in quadrature decode mode is 1 MHz. The conditioned inputs are applied to a 16-bit counter, which may be used for quadrature decoding, pules or direction-input counting, or as a pulse input up/down counter.

Applications

  • Semiconductor Manufacturing
  • Component Inspection
  • Manufacturing Quality Control
  • Food and Beverage Inspection
  • Microscopy and Medical Imaging
  • Biometrics Applications
  • X-Y-Z Table
  • Fix-pitch Stamping Machinery
  • Transfer Machinery
  • Spinner
  • Load/Unload

Click to view the Introduction of https://mctt.vn/motion-control-icp-das

Specifications

Software
OS Support Windows 95/98/ME/NT4.0
SDK DOS 6.2
Hardware
Connector 25-pin D-Sub
General
No. of Axes 3
Encoder Input
Mode Quadrant, CW/CCW, PULSE/DIR
Counting Rate 1 MHz (Max.)
Pulse Output
Counter Width 16-bit
PC Bus
Type ISA Bus
Power
Consumption +5 V @ 500 mA
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +80°C
Humidity 5 ~ 85% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

ENCODER300     CR  ISA Bus, 3-axis Encoder Interface Card
Include: CA-PC25M (25-pin Male D-Sub Connector with Plastic Cover)
