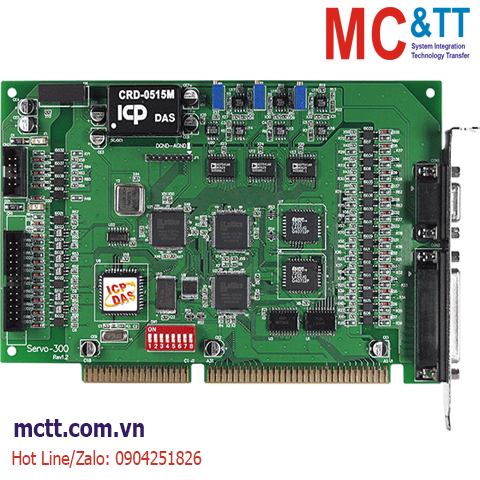

Card ISA 3-axis High-speed Servo Motor Control ICP DAS SERVO-300 CR

Chia sẻ:
Mã sản phẩm: SERVO-300
Thương hiệu: ICP DAS
Tình trạng:

ISA Bus, 3-axis High-speed Servo Motor Control Card (V Command)

Liên hệ
Mô tả

Card ISA 3-axis High-speed Servo Motor Control ICP DAS SERVO-300 CR

Features

  • ISA bus servo motor control card
  • 3-axis high-speed servo motor control card
  • V command
  • Drivers for DOS and Windows

Introduction

The SERVO-300 is a 3-axis pulse command, servo motor control board. The embedded CPU of the SERVO-300 performs the motion commands transferred from a Host PC via a 2 KB FIFO buffer. It also sends the position and status to the Host PC via a second 2 KB FIFO buffer. These buffers provide time buffer and they are very suitable for Windows operating systems. Device drivers and function libraries for DOS, Windows 7 and Windows XP/2000 are provided.

Applications

  • Semiconductor Manufacturing
  • Component Inspection
  • Manufacturing Quality Control
  • Food and Beverage Inspection
  • Microscopy and Medical Imaging
  • Biometrics Applications
  • X-Y-Z Table
  • Fix-pitch Stamping Machinery
  • Transfer Machinery
  • Spinner
  • Load/Unload

Click to view the Introduction of https://mctt.vn/motion-control-icp-das

Specifications

Software
OS Support Windows 95/98/ME/NT4.0
SDK DOS 6.2
Hardware
Connector 9-pin Male and 25-pin Female D-Sub
General
No. of Axes 3
Operation Mode Simulation, closed loop, open loop
Speed Profile T-curve
Servo Update Rate 3 ms / 3 axes
Command Type Voltage command
Axis I/O
Servo Interface Output SVON
Mechanical Switch Input Home, forward,
backward limit, EMG
Encoder Input
Mode A/B phase
Counting Rate 1 MHz (Max.)
Counter Width 32-bit
Pulse Output
Counter Width 12-bit +/-10 V
Interpolation
Circular Any 2 axes
Linear Any 2 to 3 of 3 axes
Digital Input
Channels 8
Isolation 2500 Vrms optical isolation
Digital Output
Channels 7
Isolation 2500 Vrms optical isolation
PC Bus
Type ISA bus
Power
Consumption +5 V @ 500 mA
Mechanical
Dimensions (mm) 120.4 mm * 90.8 mm
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +80°C
Humidity 5 ~ 85% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

SERVO-300  ISA Bus, 3-axis High-speed Servo Motor Control Card (V Command)
Include :
CA-9-2502 (9-pin Male & 25-pin Female D-Sub Cable 0.2 M)
CA-PC09F (9-pin Female D-Sub Connector with Plastic Cover)
CA-PC09M (9-pin Male D-Sub Connector with Plastic Cover)
CA-PC25M (25-pin Male D-Sub Connector with Plastic Cover)
