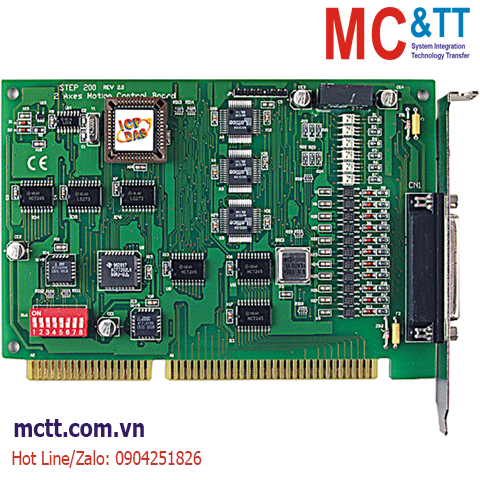

Card ISA 2-axis High-speed Stepper Motor Control ICP DAS STEP-200 CR
Features
- 2-axis independent, simultaneous stepper motor control/servo motor control (Pulse input type)
- Drivers for DOS, Windows 95/98/ME, Windows NT
- Embedded Microprocessor
- Command Type Interface
- Linear and circular interpolation
- Acceleration/deceleration: Automatic trapezoidal acceleration/deceleration
- Output polarity can be programmable
- 5 optical isolated digital inputs per axis for limit switches
Introduction
The STEP-200 is a 2-axis, command-based stepper motor controller board for IBM PC/XT/AT bus-compatible devices. The board can also be used for pulse-type servo motor control (pulse input type). The board includes a build-in μP that performs a variety of motion control commands and shares the loading of the host computer. A 2 KB FIFO is included as a command buffer, which provides a buffer time of 1360 ms. The hardware architecture of STEP-200 is ideal for the Windows operating system, and drivers for DOS and Windows are provided offering real-time motion control solutions for Windows systems.
Applications
- Semiconductor Manufacturing
- Component Inspection
- Manufacturing Quality Control
- Food and Beverage Inspection
- Microscopy and Medical Imaging
- Biometrics Applications
- X-Y-Z Table
- Fix-pitch Stamping Machinery
- Transfer Machinery
- Spinner
- Load/Unload
Click to view the Introduction of https://mctt.vn/motion-control-icp-das
Specifications
| Software |
| OS Support |
Windows 95/98/ME/NT4.0 |
| SDK |
DOS 6.2 |
| Hardware |
| Connector |
25-pin D-Sub |
| General |
| No. of Axes |
2 |
| Operation Mode |
Open loop |
| Speed Profile |
T-curve |
| Position Control Mode |
Incremental mode and absolute mode |
| Command Type |
Pulse command |
| Axis I/O |
| Servo Interface Output |
SVON |
| Mechanical Switch Input |
Home, forward, backward limit, EMG |
| Position Compare Output |
10 KHz |
| Encoder Input |
| Ring Counter Mode |
32-bit |
| Pulse Output |
| Mode |
CW/CCW, PULSE/DIR |
| Counter Width |
32-bit |
| Rate |
250 KHz (Max.) |
| Digital Input |
| Isolation |
2500 Vrms optical isolation |
| Digital Output |
| Isolation |
2500 Vrms optical isolation |
| Power |
| Consumption |
+5 V @ 500 mA |
| Environment |
| Operating Temperature |
0 ~ +50°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| STEP-200 |
ISA Bus, 2-axis High-speed Stepper Motor Control Card (Limited Functions and Economical)
Includes: Include: CA-PC25M (25-pin Male D-Sub Connector with Plastic Cover) |
