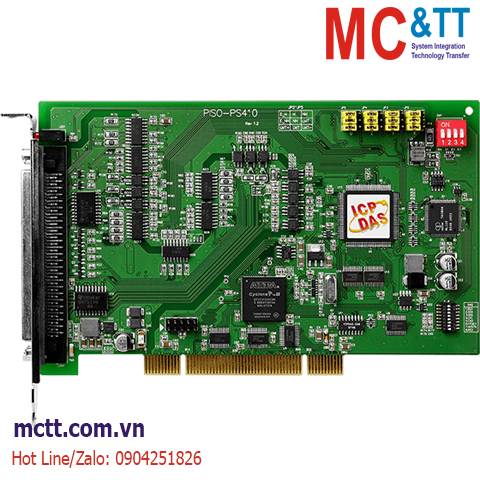

Card PCI High-speed 4-axis Motion Control Card with FRnet Master ICP DAS PISO-PS410 CR

Chia sẻ:
Mã sản phẩm: PISO-PS410
Thương hiệu: ICP DAS
Tình trạng:

Universal PCI Bus, High-speed 4-axis Motion Control Card with FRnet Master

Liên hệ
Mô tả

Card PCI High-speed 4-axis Motion Control Card with FRnet Master ICP DAS PISO-PS410 CR

Features

  • Independent 4-axis motion control
  • Support for hand wheel and jog functions
  • 4-step home modes with auto-searching
  • 2/3-axis linear interpolation function
  • 2-axis circular interpolation function
  • Programmable T/S-curve acceleration and deceleration
  • Programmable ring counter
  • Alarm reset and error counter clear output (ERC)
  • High-speed auto incremental and auto reloadable compare output (CMP)
  • Expandable remote I/O: 128 DI and 128 DO via a two-wire FRnet interface

Introduction

The PISO-PS410 is a 4-axis stepping/pulse-type servo motor control card that can be used on any IPC with a 5 V or 3.3 V PCI bus, and is suitable for general-purpose motion control applications. This card equipped with one FRnet Master which allows the fast remote I/O of the IPC to be expanded easily. The two-wired FRnet interface allows a maximum 128 DI and 128 DO channels, which are automatically scanned within a period of 0.72 ms. In addition to its wide speed range, this intelligent motion controller also has a variety of motion control functions built in, such as 2/3-axis linear interpolation, 2-axis circular interpolation, T/S-curve acceleration/ deceleration, numerous synchronous actions, automatic homing, and others.

A major advantage is that the majority of the PISO-PS410 motion control functions are performed by the high-performance motion ASIC with little load on the processor. The motion status, FRnet I/O, and the other I/O cards on the IPC can still be monitored while driving the motors. As the low CPU loading requirements of the PISO-PS410 is minimal, one or more motion cards can be used with a single IPC. ICP DAS also provides a variety of functions and examples that can be used to reduce the need for additional programming, making it a highly cost-effective solution for motion control application developers.

Applications

  • Semiconductor Manufacturing
  • Component Inspection
  • Manufacturing Quality Control
  • Food and Beverage Inspection
  • Microscopy and Medical Imaging
  • Biometrics Applications
  • X-Y-Z Table
  • Fix-pitch Stamping Machinery
  • Transfer Machinery
  • Spinner
  • Load/Unload

Click to view the Introduction of https://mctt.vn/motion-control-icp-das

Specifications

Software
OS Support Windows 7 32/64-bit
Windows XP/2000 32-bit
Utility EzGo Utility
Hardware
Connector 100-pin SCSI-II
General
No. of Axes 4
Operation Mode Semi-closed Loop
Synchronous Action 10 activation factors
and 14 actions
Speed Profile T/S-curve
Position Control Mode Incremental mode
and Absolute mode
Command Type Pulse Command
Axis I/O
Servo Interface Output SVON, ALM_RST, ERC
Mechanical Switch Input Home, LMT+/-,
NHOME, EMG
Position Compare Output High-Speed 5 V TTL
or 24 V open collector
(2 of any 4 axes)
Servo Interface Input INP, ALM
Encoder Input
Ring Counter Mode 32-bit
Mode A/B Phase, Up/Down
Counting Rate 4 MHz
Counter Width 32-bit
Pulse Output
Mode CW/CCW, PULSE/DIR
Counter Width 32-bit
Rate 4 MHz (Max.)
Interpolation
Circular Any 2 axes
Linear Any 2 to 3 of 4 axes
Digital Input
Channels Local: 4 DI
Expandable: 128 DI
Isolation 2500 Vrms optical isolation
Digital Output
Channels Local: 4 DO
Expandable: 128 DO
Isolation 2500 Vrms optical isolation
PC Bus
Type Universal PCI Bus
Power
Consumption +5 V @ 500 mA
Environment
Operating Temperature -20 ~ +75°C
Storage Temperature -30 ~ +85°C
Humidity 5 ~ 85% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

PISO-PS410  Universal PCI Bus, High-speed 4-axis Motion Control Card with FRnet Master
