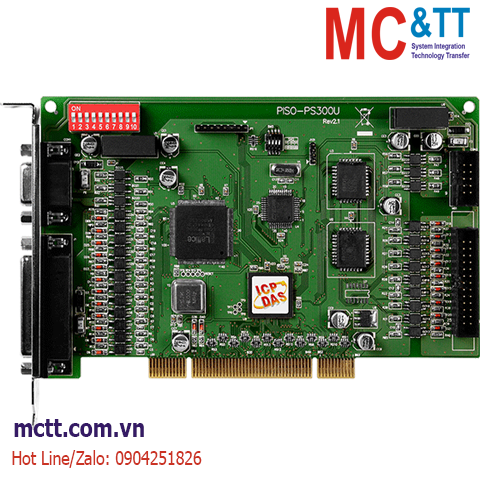

Card PCI 3-axis Stepper Motor/Servo Control ICP DAS PISO-PS300U CR

Features

  • Universal PCI Bus
  • 3-axis pulse command servo motor board
  • Embedded CPU
  • Max. Pulse Rate: 1 MHz
  • 3-axis linear interpolation, circular interpolation
  • Programmable trapezoidal speed profile
  • Programmable DDA cycle
  • Hardware emergency stop
  • Drivers for DOS, Windows XP/2000 and Windows 7
  • 8 DI, 7 DO channels

Introduction

The PISO-PS300U is a 3-axis pulse command, servo motor control board. The embedded CPU of the PISO-PS300U performs the motion commands transferred from a Host PC via a 2 KB FIFO buffer. It also sends the position and status to the Host PC via a second 2 KB FIFO buffer. These buffers provide time buffer and they are very suitable for Windows operating systems. Device drivers and function libraries for DOS, Windows 7, and Windows XP/2000 are provided.

Applications

  • Semiconductor Manufacturing
  • Component Inspection
  • Manufacturing Quality Control
  • Food and Beverage Inspection
  • Microscopy and Medical Imaging
  • Biometrics Applications
  • X-Y-Z Table
  • Fix-pitch Stamping Machinery
  • Transfer Machinery
  • Spinner
  • Load/Unload

Click to view the Introduction of https://mctt.vn/motion-control-icp-das

Specifications

Software
OS Support Windows 7/XP/2000 32-bit only
SDK DOS 6.2
Hardware
Connector 9-pin Male and 25-pin Female D-Sub
General
No. of Axes 3
Operation Mode Semi-closed Loop
Speed Profile T-curve
Position Control Mode Incremental mode
Command Type Pulse Command
Axis I/O
Servo Interface Output SVON
Mechanical Switch Input Home, forward,
backward limit, EMG
Encoder Input
Mode A/B phase, CW/CCW, PULSE/DIR
Counting Rate 1 MHz (Max.)
Counter Width 32-bit
Pulse Output
Mode CW/CCW, PULSE/DIR
Counter Width 32-bit
Rate 1 MHz (Max.)
Interpolation
Circular Any 2 axes
Linear Any 2 to 3 of 3 axes
Digital Input
Channels 8
Isolation 2500 Vrms optical isolation
Digital Output
Channels 7
Isolation 2500 Vrms optical isolation
PC Bus
Type Universal PCI bus
Power
Consumption +5 V @ 950 mA
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

PISO-PS300U     CR  Universal PCI Bus, 3-axis Stepper Motor/Servo Control Card (Limited Functions and Economical)
Includes:
CA-9-2502 (9-pin Male and 25-pin Female D-Sub Cable, Length 0.2 M)
CA-PC09F (9-pin Female D-Sub Connector with Plastic Cover)
CA-PC09M (9-pin Male D-Sub Connector with Plastic Cover)
CA-PC25M (25-pin Male D-Sub Connector with Plastic Cover)
