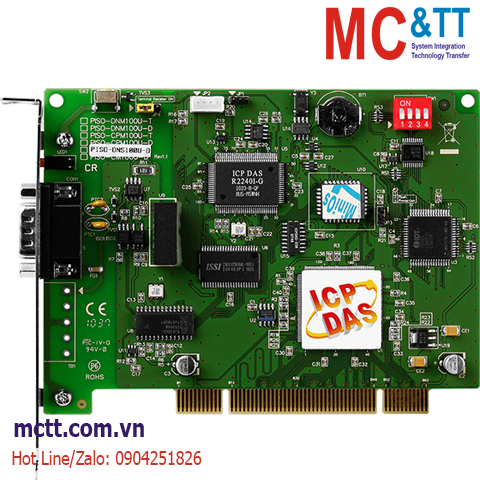

Card PCI 1 cổng DeviceNet Multi-Slave ICP DAS PISO-DNS100U-D CR
Features
- • DeviceNet Version : DeviceNet Specification Volume I & II, Release 2.0
• Number of Slave Nodes : 10(Max) nodes inside the board
• Porgrammable baud rate : 125K, 250K, 500K
• Support programmable MAC ID.
• Support Message Groups : Group 2 only Server
• UCMM : Not Support
• I/O Operating Modes : Poll, Bit-Strobe, Change of State/ Cyclic
• No. of Fragment I/O : up to 512 bytes of input & 512 bytes output data
Introduction

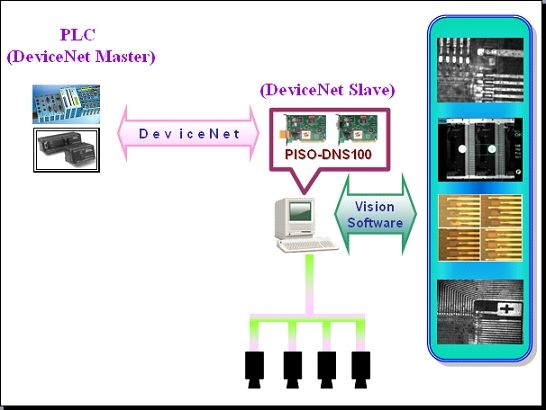

The PISO-DNS100 has completed DeviceNet slave function according to DeviceNet Group 2 only server. With the built-in x86 CPU, this card can be applied in high transmission applications. The amazing function is that 10 slave nodes are implemented inside the PISO-DNS100. It supports up to 512 bytes of input & 512 bytes output data. DeviceNet Baud rate of 125-500 kbits/s & MACID can be set via utility setting. The PCI card also has an optically isolated DeviceNet interface.

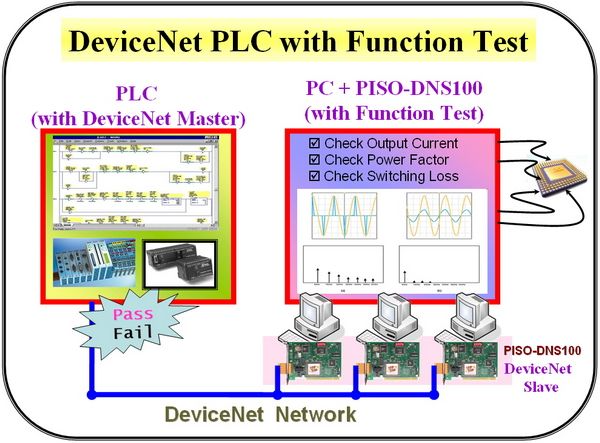

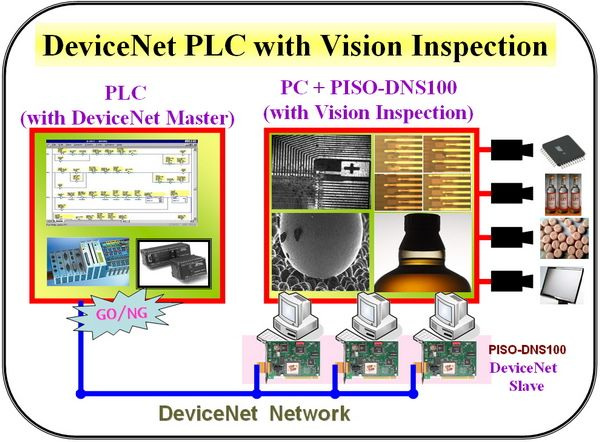

Applications
• Industrial Machinery
• Building Automation
• Medical
• Maritime
• Restaurant Appliances
• Laboratory Equipment & Research
Click to view the Introduction of https://mctt.vn/devicenet-icp-das
Specifications
| Software |
| Driver |
Windows XP/7/8/10 (32-bit/64-bit OS) |
| SDK |
VB 6.0, VC++ 6.0, BCB 6.0 |
| LED Indicators |
| Status |
Status LED, ERR LED |
| PC Bus |
| Type |
Universal PCI supports both 5 V and 3.3 V PCI bus |
| Board No. |
By DIP switch |
| DeviceNet |
| Controller |
NXP SJA1000T with 16 MHz clock
Microprocessor inside with 80186 80MHz |
| Ports |
1 |
| Baud Rate |
125 k, 250 k, 500 k |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor |
Jumper for 120 Ω terminal resistor |
| Protocol |
DeviceNet Volumn I ver2.0, Volumn II ver2.0 |
| CAN Specification |
ISO-11898-2, CAN 2.0A |
| Power |
| Consumption |
300 mA @ 5 V |
| Mechanical |
| Dimensions (mm) |
138 x 22 x 105 (W x L x H) |
| Environment |
| Operating Temperature |
0 ~ +60 ℃ |
| Storage Temperature |
-20 ~ +70 ℃ |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PISO-DNS100U-D CR |
1 Port Intelligent DeviceNet Multi-Slave Universal PCI Board (9-pin D-sub Connector) (RoHS) |
