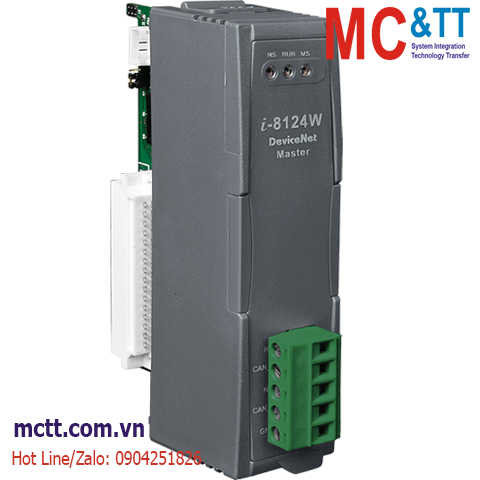

Module 1 cổng DeviceNet Master ICP DAS I-8124W-G CR
Features
- Programmable master MAC ID
- Support maximum nodes up to 64
- Support Group 2 and UCMM functions
- The maximum Fragment number is (Input/Output) up to 64
- Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
- Support auto-scan slave device function
- Support on-line add device into and remove device from network
- Support auto-reconnect when the connection is broken
Introduction
The CAN (Controller Area Network) is a serial communication protocol, and efficiently supports distributed real-time control with a very high level of security. It is an especially suit for networking "intelligent" devices as well as sensors and actuators within a system or sub-system. In CAN network, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted. As standalone CAN controller, I-8124W can represent an economic solution of DeviceNet application and be a DeviceNet master device in the CAN bus on the DeviceNet network. It is a "Predefined Master connection Set", and supports Group 2 only Server functions to communication with slave devices. It has a independent CAN bus communication port with 5-pin screw terminal connector, and has the ability to cover a wide range of DeviceNet applications. Besides, I-8124W uses the CAN controller Phillips SJA1000T and transceiver 82C250, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in WinPAC or ViewPAC series PAC.It is popularly applied in the industrial automation, building automation,vehicle, marine, and embedded control network. In order to expand the DeviceNet functions of ICPDAS products, I-8124W module is developed for this purpose.
Applications
• Industrial Machinery
• Building Automation
• Medical
• Maritime
• Restaurant Appliances
• Laboratory Equipment & Research
Click to view the Introduction of https://mctt.vn/devicenet-icp-das
Specifications
| Software |
| Driver |
WinPAC, ViewPAC, XPAC-CE6 (The XPAC series PAC only support one I-8124W) |
| SDK |
For CE5: VB.Net, C#.Net, VC 2005 (with .Net Framework 2.0 or upper), and eVC++ 4.0
For CE6: VB.Net, C#.Net, VC 2008 (with .Net Framework 3.5 or upper) |
| CPU Module |
| CPU |
x86 |
| Watchdog Timer |
CPU built-in |
| LED Indicators |
| Status |
NS LED, RUN LED, MS LED |
| DeviceNet |
| Controller |
NXP SJA1000T with 16 MHz clock |
| Ports |
1 |
| Baud Rate |
125 k, 250 k, 500 k |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor |
Switch for 120 Ω terminal resistor |
| Protocol |
DeviceNet Volumn I ver2.0, Volumn II ver2.0 |
| CAN Specification |
ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Mechanical |
| Dimensions (mm) |
31 x 115 x 91 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 ℃ |
| Storage Temperature |
-30 ~ +80 ℃ |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-8124W-G CR |
1 Port DeviceNet Master Module (Paralle Bus Type) (RoHS) |
