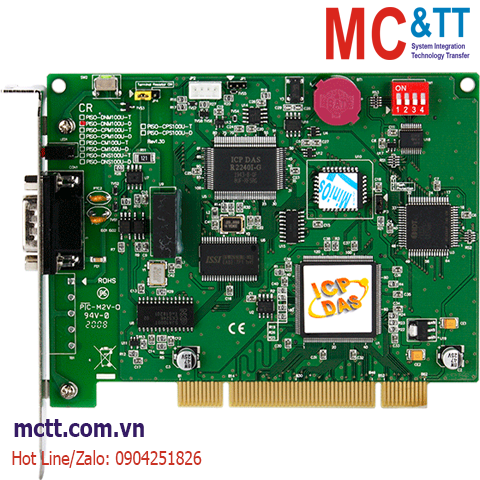

Card PCI 1 cổng DeviceNet Master ICP DAS PISO-DNM100U-D CR
Features
- Programmable Master MAC ID
- Programmable transfer-rate 125 kbps, 250 kbps, 500 kbps
- Each port support maximum nodes up to 64
- Support UCMM and Group 2 Only Server functions
- The maximum Fragment number is (Input/Output) up to 64
- Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
- Support Auto-Scan slave device function
- Support on-line adding and removing devices
- Support boot-up auto communicating with slave devices
- Support Auto-Reconnect when the connection is broken
Introduction
PISO-DNM100U can represent an economic solution of DeviceNet application and be a DeviceNet master device on the DeviceNet network. It is a "Predefined Master-Slave connection Set". PISO-DNM100 supports Group 2 only Server and UCMM functions to communication with slave devices. It has an independent CAN bus communication port and has the ability to cover a wide range of DeviceNet applications.
Besides, PISO-DNM100U uses the CAN controller Phillips SJA1000T and transceiver 82C250, which provide bus arbitration, error detection with auto correction and re-transmission function.It can be installed on almost any windows-based system, for example Windows system. It is popularly applied in the industrial automation, building automation, vehicle, marine, and embedded control network. In order to expand the DeviceNet functions of ICPDAS products, PISO-DNM100U is developed for this purpose.
Applications
Click to view the Introduction of https://mctt.vn/devicenet-icp-das
Specifications
| Software |
| Driver |
Windows XP/7/8/10 (32-bit/64-bit OS) |
| SDK |
VB 6.0, VC++ 6.0, BCB 6.0, Visual Studio .NET |
| LED Indicators |
| Status |
Green LED, Red LED |
| PC Bus |
| Type |
Universal PCI supports both 5 V and 3.3 V PCI bus |
| Board No. |
By DIP switch |
| DeviceNet |
| Controller |
NXP SJA1000T with 16 MHz clock
Microprocessor inside with 80186 80MHz |
| Ports |
1 |
| Baud Rate |
125 k, 250 k, 500 k |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor |
Jumper for 120 Ω terminal resistor |
| Protocol |
DeviceNet Volumn I ver2.0, Volumn II ver2.0 |
| CAN Specification |
ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Power |
| Consumption |
300 mA @ 5 V |
| Mechanical |
| Dimensions (mm) |
138 x 22 x 105 (W x L x H) |
| Environment |
| Operating Temperature |
0 ~ +60 ℃ |
| Storage Temperature |
-20 ~ +70 ℃ |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PISO-DNM100U-D CR |
1 Port Intelligent DeviceNet Master Universal PCI Board (9-pin D-Sub Connector) (RoHS) |
