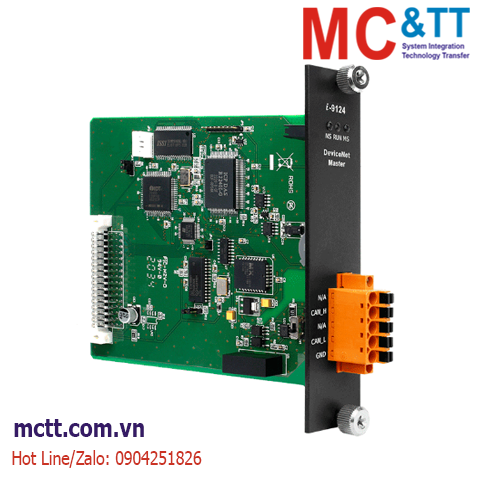

Module 1 cổng DeviceNet Master ICP DAS I-9124 CR

Module 1 cổng DeviceNet Master ICP DAS I-9124 CR

CAN (Controller Area Network) is a serial communication protocol that supports distributed real-time control and has high security features. CAN is particularly suitable for networked "intelligent" devices and systems, or sensors and actuators in subsystems. In a CAN network, generally, there is no addressing of users or stations, but rather the sending of priority messages.

I-9124 is a DeviceNet master module that supports both Group 2 and UCMM functions, offering a high-performance DeviceNet master solution. Combined with the expansibility and flexibility of the WinPAC-9000-CE7 series host, I-9124 can be used in applications with higher real-time requirements. I-9124's firmware includes a complete set of DeviceNet communication protocol encoding and decoding functions. Application developers can use simple "Read" or "Write" commands to control the I/O data of remote DeviceNet slave devices. Thus, I-9124 not only expands the WinPAC-9000-CE7 series host with a DeviceNet communication interface but also assists users in efficiently monitoring remote DeviceNet slave devices without being familiar with the complex DeviceNet communication protocols.

Features

• DeviceNet Version: Volume I & II, Release 2.0
• Programmable master MAC ID and baud rate.
• Baud Rate: 125k, 250k, 500k bps
• Support Group 2 and UCMM connection
• I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
• I/O Length: max 512 input bytes and 512 output bytes per slave
• Slave Node : 63 nodes max.
• Auto-reconnect when the connection is broken

Applications

• Industrial Machinery
• Building Automation
• Medical
• Maritime
• Restaurant Appliances
• Laboratory Equipment & Research
