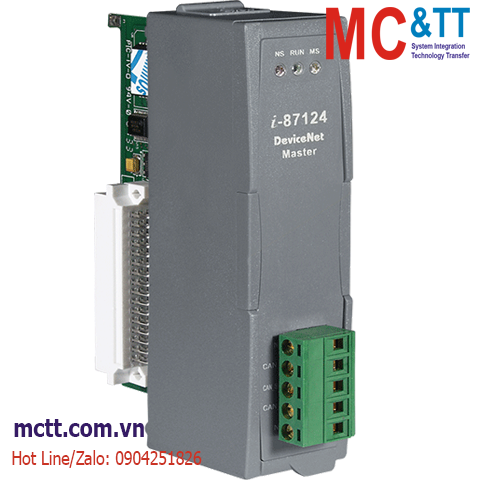

Module 1 cổng DeviceNet Master ICP DAS I-87124-G CR

Features

  • DeviceNet Version: Volume I & II, Release 2.0
  • Programmable master MAC ID
  • Slave Node : 63 nodes max
  • Support Group 2 and UCMM functions
  • I/O Length: max 512 input bytes and 512 output bytes pre slave
  • Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
  • Support auto-detect Group 2 and UCMM device
  • Support auto-scan slave device function
  • Support on-line add device into and remove device from network
  • Support auto-reconnect when the connection is broken

Introduction

The CAN (Controller Area Network) is a serial communication protocol, and efficiently supports distributed real-time control with a very high level of security. It is an especially suit for networking "intelligent" devices as well as sensors and actuators within a system or sub-system. In CAN network, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted. As standalone CAN controller, I-87124 can represent an economic solution of DeviceNet application and be a DeviceNet master device in the CAN bus on the DeviceNet network. It is a "Predefined Master connection Set", and supports Group 2 only Server functions to communication with slave devices. It has a independent CAN bus communication port with 5-pin screw terminal connector, and has the ability to cover a wide range of DeviceNet applications. Besides, I-87124 uses the CAN controller Phillips SJA1000T and transceiver 82C250, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in WinPAC or ViewPAC series PAC.It is popularly applied in the industrial automation, building automation,vehicle, marine, and embedded control network. In order to expand the DeviceNet functions of ICPDAS products, I-87124 module is developed for this purpose.

Applications

• Industrial Machinery
• Building Automation
• Medical
• Maritime
• Restaurant Appliances
• Laboratory Equipment & Research

Click to view the Introduction of https://mctt.vn/devicenet-icp-das

Specifications

Software
Driver Windows CE
SDK VB.Net 2005, C#.Net 2005, eVC++ 4.0
CPU Module
CPU x86
Watchdog Timer CPU built-in
LED Indicators
Status NS LED, RUN LED, MS LED
DeviceNet
Controller NXP SJA1000T with 16 MHz clock
Ports 1
Baud Rate 125 k, 250 k, 500 k
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Switch for 120 Ω terminal resistor
Protocol DeviceNet Volumn I ver2.0, Volumn II ver2.0
CAN Specification ISO-11898-2, CAN 2.0A and CAN 2.0B
Power
Consumption 2 W
Mechanical
Dimensions (mm) 31 x 115 x 91 (W x L x H)
Environment
Operating Temperature -25 ~ +75 ℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-87124-G  1 Port DeviceNet Master Module (Serial Bus Type) (RoHS)
