Card PCI 1 cổng DeviceNet Multi-Slave ICP DAS PISO-DNS100U-T CR

Chia sẻ:
Mã sản phẩm: PISO-DNS100U-T
Thương hiệu: ICP DAS
Tình trạng:

1 Port Intelligent DeviceNet Multi-Slave Universal PCI Board

Liên hệ
Mô tả

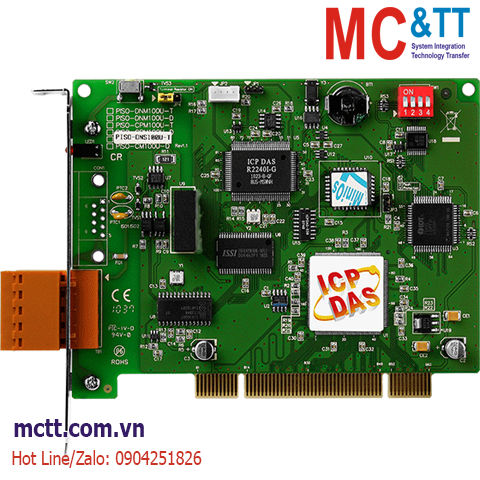

Card PCI 1 cổng DeviceNet Multi-Slave ICP DAS PISO-DNS100U-T CR

Features

  • • DeviceNet Version : DeviceNet Specification Volume I & II, Release 2.0
    • Number of Slave Nodes : 10(Max) nodes inside the board
    • Porgrammable baud rate : 125K, 250K, 500K
    • Support programmable MAC ID.
    • Support Message Groups : Group 2 only Server
    • UCMM : Not Support
    • I/O Operating Modes : Poll, Bit-Strobe, Change of State/ Cyclic
    • No. of Fragment I/O : up to 512 bytes of input & 512 bytes output data

Introduction

The PISO-DNS100 has completed DeviceNet slave function according to DeviceNet Group 2 only server. With the built-in x86 CPU, this card can be applied in high transmission applications. The amazing function is that 10 slave nodes are implemented inside the PISO-DNS100. It supports up to 512 bytes of input & 512 bytes output data. DeviceNet Baud rate of 125-500 kbits/s & MACID can be set via utility setting. The PCI card also has an optically isolated DeviceNet interface.

Applications

• Industrial Machinery
• Building Automation
• Medical
• Maritime
• Restaurant Appliances
• Laboratory Equipment & Research

Click to view the Introduction of https://mctt.vn/devicenet-icp-das

Specifications

Software
Driver Windows XP/7/8/10 (32-bit/64-bit OS)
SDK VB 6.0, VC++ 6.0, BCB 6.0
LED Indicators
Status Status LED, ERR LED
PC Bus
Type Universal PCI supports both 5 V and 3.3 V PCI bus
Board No. By DIP switch
DeviceNet
Controller NXP SJA1000T with 16 MHz clock
Microprocessor inside with 80186 80MHz
Ports 1
Baud Rate 125 k, 250 k, 500 k
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Jumper for 120 Ω terminal resistor
Protocol DeviceNet Volumn I ver2.0, Volumn II ver2.0
CAN Specification ISO-11898-2, CAN 2.0A
Power
Consumption 300 mA @ 5 V
Mechanical
Dimensions (mm) 138 x 22 x 105 (W x L x H)
Environment
Operating Temperature 0 ~ +60 ℃
Storage Temperature -20 ~ +70 ℃
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PISO-DNS100U-T     CR  1 Port Intelligent DeviceNet Multi-Slave Universal PCI Board (5-pin Screw Terminal Connector) (RoHS)
