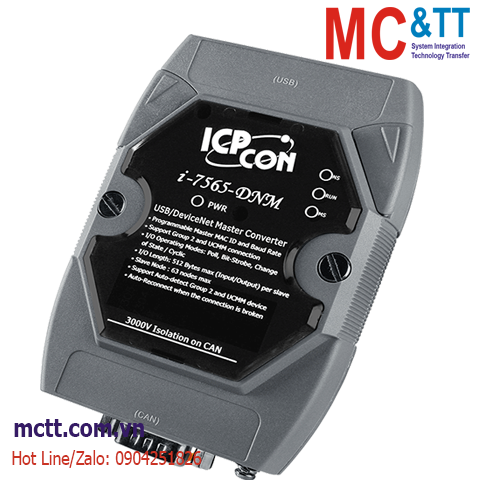

Bộ chuyển đổi USB sang DeviceNet Master ICP DAS I-7565-DNM-G CR

Features

  • Programmable Master MAC ID
  • Programmable transfer-rate 125 kbps, 250 kbps, 500 kbps
  • Each port support maximum nodes up to 64
  • Support UCMM and Group 2 Only Server functions
  • The maximum Fragment number is (Input/Output) up to 64
  • Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
  • Support Auto-Scan slave device function
  • Support on-line adding and removing devices
  • Support boot-up auto communicating with slave devices
  • Support Auto-Reconnect when the connection is broken

Introduction

I-7565-DNM can represent an economic solution of DeviceNet application and be a DeviceNet master device on the DeviceNet network. It is a "Predefined Master-Slave connection Set". I-7565-DNM supports Group 2 only Server and UCMM functions to communication with slave devices. It has an independent CAN bus communication port and has the ability to cover a wide range of DeviceNet applications. Besides, I-7565-DNM uses the CAN controller Phillips SJA1000T and transceiver 82C250, which provide bus arbitration, error detection with auto correction and re-transmission function.It can be installed on almost any windows-based system, for example WinXP/Win7/Win10. It is popularly applied in the industrial automation, building automation, vehicle, marine, and embedded control network. In order to expand the DeviceNet functions of ICPDAS products, I-7565-DNM is developed for this purpose.

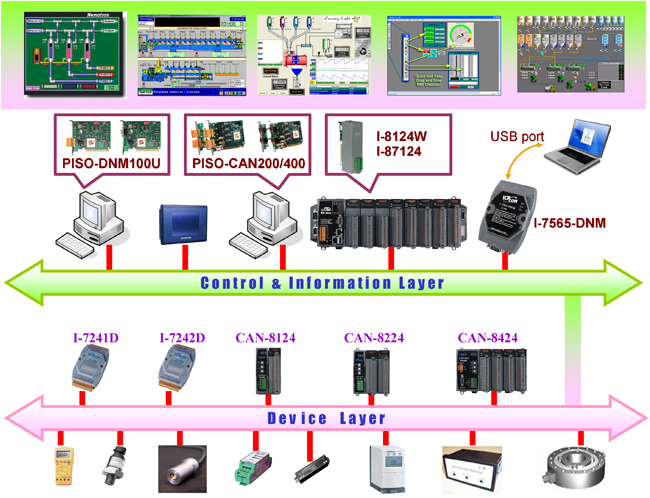

Applications

• Industrial Machinery
• Building Automation
• Medical
• Maritime
• Restaurant Appliances
• Laboratory Equipment & Research

Click to view the Introduction of https://mctt.vn/devicenet-icp-das

Specifications

Software
Driver Win XP/ Win7/ Win8/ Win10 32-bit and 64-bit , Linux driver
SDK x64 DLL, .NET DLL, VB6 bas, VC6 DLL, BCB6 DLL
CPU Module
CPU x86
LED Indicators
Status PWR LED, RUN LED, NS LED, MS LED
USB
Specification USB 1.1 and USB 2.0
Transfer Speed 921.6 kbps
Connector USB Type B
DeviceNet
Controller NXP SJA1000T with 16 MHz clock
Ports 1
Baud Rate 125 k, 250 k, 500 k
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Jumper for 120 Ω terminal resistor
Protocol DeviceNet Volumn I ver2.0, Volumn II ver2.0
CAN Specification ISO-11898-2, CAN 2.0A and CAN 2.0B
Power
Consumption 3 W
Mechanical
Dimensions (mm) 72 x 101 x 33 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 ℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7565-DNM-G     CR  USB/DeviceNet Master Converter with D-sub 9-pin connector (RoHS)
