Card PCI 1 cổng DeviceNet Master ICP DAS PISO-DNM100U-T CR

Chia sẻ:
Mã sản phẩm: PISO-DNM100U-T
Thương hiệu: ICP DAS
Tình trạng:

1 Port Intelligent DeviceNet Master Universal PCI Board

Liên hệ
Mô tả

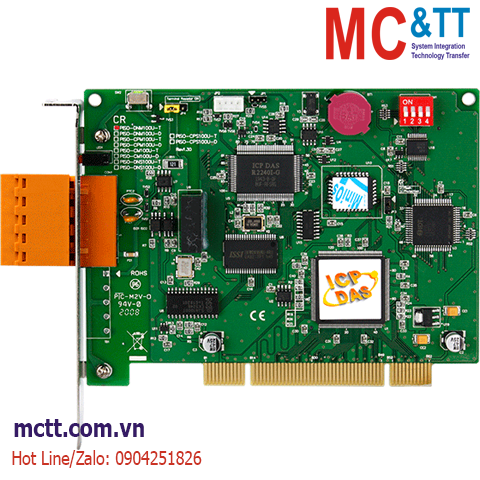

Card PCI 1 cổng DeviceNet Master ICP DAS PISO-DNM100U-T CR

Features

  • Programmable Master MAC ID
  • Programmable transfer-rate 125 kbps, 250 kbps, 500 kbps
  • Each port support maximum nodes up to 64
  • Support UCMM and Group 2 Only Server functions
  • The maximum Fragment number is (Input/Output) up to 64
  • Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
  • Support Auto-Scan slave device function
  • Support on-line adding and removing devices
  • Support boot-up auto communicating with slave devices
  • Support Auto-Reconnect when the connection is broken

Introduction

PISO-DNM100U can represent an economic solution of DeviceNet application and be a DeviceNet master device on the DeviceNet network. It is a "Predefined Master-Slave connection Set". PISO-DNM100 supports Group 2 only Server and UCMM functions to communication with slave devices. It has an independent CAN bus communication port and has the ability to cover a wide range of DeviceNet applications.

Besides, PISO-DNM100U uses the CAN controller Phillips SJA1000T and transceiver 82C250, which provide bus arbitration, error detection with auto correction and re-transmission function.It can be installed on almost any windows-based system, for example Windows system. It is popularly applied in the industrial automation, building automation, vehicle, marine, and embedded control network. In order to expand the DeviceNet functions of ICPDAS products, PISO-DNM100U is developed for this purpose.

Applications

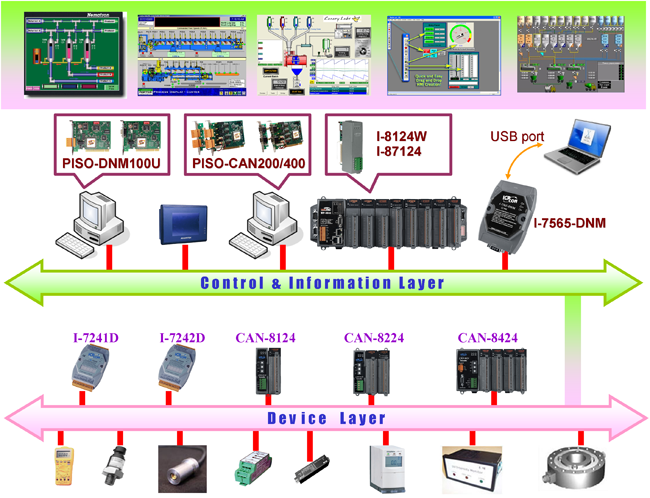

Click to view the Introduction of https://mctt.vn/devicenet-icp-das

Specifications

Software
Driver Windows XP/7/8/10 (32-bit/64-bit OS)
SDK VB 6.0, VC++ 6.0, BCB 6.0, Visual Studio .NET
LED Indicators
Status Green LED, Red LED
PC Bus
Type Universal PCI supports both 5 V and 3.3 V PCI bus
Board No. By DIP switch
DeviceNet
Controller NXP SJA1000T with 16 MHz clock
Microprocessor inside with 80186 80MHz
Ports 1
Baud Rate 125 k, 250 k, 500 k
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Jumper for 120 Ω terminal resistor
Protocol DeviceNet Volumn I ver2.0, Volumn II ver2.0
CAN Specification ISO-11898-2, CAN 2.0A and CAN 2.0B
Power
Consumption 300 mA @ 5 V
Mechanical
Dimensions (mm) 138 x 22 x 105 (W x L x H)
Environment
Operating Temperature 0 ~ +60 ℃
Storage Temperature -20 ~ +70 ℃
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PISO-DNM100U-T     CR  1 Port Intelligent DeviceNet Master Universal PCI Board (5-pin Screw Terminal Connector) (RoHS)
