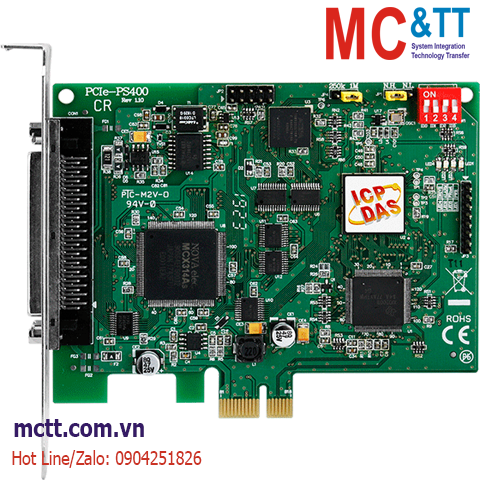

Card PCI Express High-speed 4-axis Motion Control Card ICP DAS PCIe-PS400 CR

Chia sẻ:
Mã sản phẩm: PCIe-PS400
Thương hiệu: ICP DAS
Tình trạng:

Universal PCI Bus, High-speed 4-axis Motion Control Card with FRnet Master

Liên hệ
Mô tả

Card PCI Express High-speed 4-axis Motion Control Card ICP DAS PCIe-PS400 CR

Features

  • Independent 4-axis motion control
  • Support for hand wheel and jog functions
  • 2/3-axis linear / 2-axis circular interpolation function
  • Continuous interpolation function
  • Programmable T/S-curve acceleration and deceleration
  • A maximum pulse output rate of 4 MHz for each axis
  • Pulse output types: CW/CCW or PULSE/DIR
  • 32-bit encoder counter for each axis
  • Encoder pulse input types: A/B phase or Up/Down
  • Programmable automatic homing for each axis
  • Programmable software limits
  • A wide range of synchronous actions (event-triggered actions)

Introduction

The PCIe-PS400 is a 4-axis stepping/pulse-type servo motor control card that can be used on any IPC with PCI Express bus, and is suitable for general-purpose motion control applications.

In addition to its wide speed range, this intelligent motion controller also has a variety of motion control functions built in, such as 2/3-axis linear interpolation, 2-axis circular interpolation, T/S-curve acceleration/deceleration, numerous synchronous actions, automatic homing, and others. A major advantage is that the majority of the PS400 series motion control functions are performed by the high-performance motion ASIC with little load on the processor. The motion status and the other I/O cards on the IPC can still be monitored while driving the motors.

As the low CPU loading requirements of the PS400 series is minimal, one or more motion cards can be used with a single IPC. ICP DAS also provides a variety of functions and examples that can be used to reduce the need for additional programming, making it a highly cost-effective solution for motion control application developers.

Applications

  • Semiconductor Manufacturing
  • Component Inspection
  • Manufacturing Quality Control
  • Food and Beverage Inspection
  • Microscopy and Medical Imaging
  • Biometrics Applications
  • X-Y-Z Table
  • Fix-pitch Stamping Machinery
  • Transfer Machinery
  • Spinner
  • Load/Unload

Click to view the Introduction of https://mctt.vn/motion-control-icp-das

Specifications

Software
OS Support Windows 7/10 32/64-bit
Windows XP/2000 32-bit
Utility EzGo Utility
SDK Labview 5.0 ~ Labview 8.x
Hardware
Connector 68-pin SCSI-II
General
No. of Axes 4
Operation Mode Semi-closed Loop
Synchronous Action 10 activation factors
and 14 actions
Speed Profile T/S-curve
Position Control Mode Incremental mode
and Absolute mode
Command Type Pulse Command
Isolation (with DN-8468)2500 Vrms optical isolation
Axis I/O
Servo Interface Output SVON
Mechanical Switch Input Home, LMT+/-,
NHOME, EMG
Position Compare Output 10 KHz (X and Y only)
Servo Interface Input INP, ALM
Encoder Input
Ring Counter Mode 32-bit
Mode A/B Phase, Up/Down
Counting Rate 4 MHz (Max.)
Counter Width 32-bit
Pulse Output
Mode CW/CCW, PULSE/DIR
Counter Width 32-bit
Rate 4 MHz (Max.)
Interpolation
Circular Any 2 axes
Linear Any 2 to 3 of 4 axes
Digital Input
Channels Local: 4 DI
PC Bus
Type PCI Express x1
Power
Consumption +5 V @ 500 mA
Environment
Operating Temperature -20 ~ +75°C
Storage Temperature -30 ~ +85°C
Humidity 5 ~ 85% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

PCIe-PS400     CR  PCI Express Bus, High-speed 4-axis Motion Control Card (RoHS)
