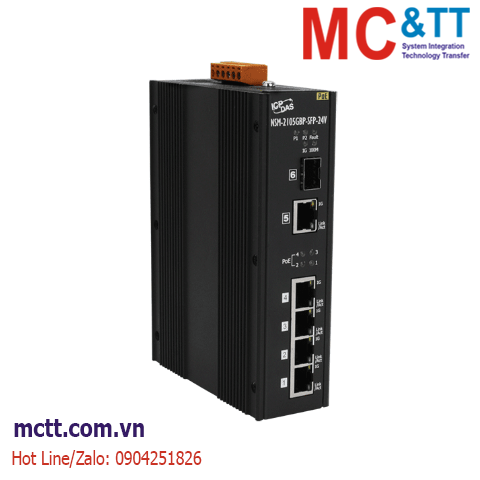

Switch công nghiệp 5 cổng Gigabit PoE + 1 cổng Gigabit SFP ICP DAS NSM-2105GBP-SFP-24V CR
The NSM-2105GBP-SFP-24V has 5 Port GbE copper and 1 100/1000 SFP Slot, supports IEEE 802.3 bt TYPE 4 PoE can meet the power supply needs of high-power PoE equipment, Compatible with IEEE802.3af/at PoE devices
Feature
- 1x 100/1000 SFP socket for Easy and Flexible Fiber Expansion.
- Supports Dual +24 ~ 57 VDC power input and 1 Power loss alarm relay output
- 71W bt PoE supports for Port 1~Port4
Application
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
± 4 kV |
| ESD (IEC 61000-4-2) |
± 4 kV Contact |
| LED Indicators |
| Status |
PWR1, PWR2, PWR Fail, Link/Act, 1000M, PoE Status, 1000M SFP, 100M SFP |
| Ethernet |
| Ports |
5 x RJ-45, 10/100/1000 BaseT(X) |
| Standards |
IEEE 802.3 for 10 Base-T,
IEEE 802.3u for 100 Base-TX & 100 Base-FX
IEEE 802.3ab for 1000 Base-T,
IEEE 802.3z for 1000 BaseSX/LX
IEEE 802.3x for Flow Control
IEEE 802.3 af/at/bt for PoE |
| Processing Type |
Store & forward |
| MAC Table |
4 K |
| Frame Buffer Memory |
1.5 Mbit |
| Jumbo Frames |
9 K |
| Isolation |
1500 Vrms 1 minute |
| PoE Technology |
| PoE Compliance |
IEEE802.3 bt, Compliance IEEE802.3 af / at |
| PoE Power |
210 W for total PD Consumption,
Up to 71 watts per PoE ports |
| PoE Pin Assignments |
V+(Pin 3,4,5,6),V-(Pin 1,2,7,8) ,4 PPoE |
| PoE Voltage |
52 V |
| Fiber |
| Ports |
1 x 100/1000 Mbps SFP slots |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+24 VDC ~ +57 VDC |
| Redundant Power Inputs |
Yes |
| Consumption |
0.20 A @ 24 VDC without PD loading, |
| Alarm Output |
Yes, Relay 1 A @ 30 VDC |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
DIN-rail mounting: 42x 164 x 122 (W x L x H) |
| Installation |
DIN-rail mounting or wall mounting (optional) |
| Ingress Protection Rating |
IP30 |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-40 °C ~ +85 °C |
| Humidity |
10% ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| NSM-2105GBP-SFP-24V CR |
Unmanaged 5-port Gigabit + 1 SFP Slot Ethernet Switch with IEEE 802.3bt PoE Ports (RoHS) |
