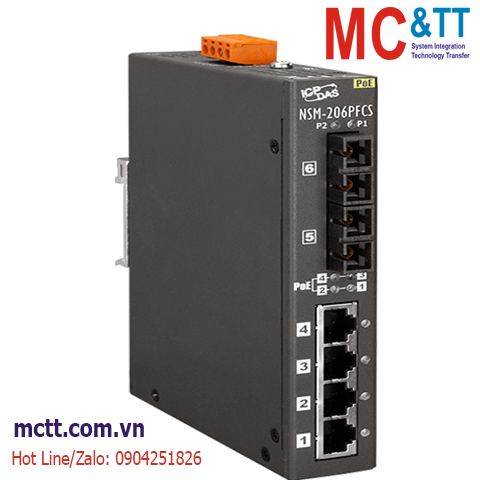

Switch công nghiệp 4 cổng PoE Ethernet + 2 cổng Quang (Dual Fiber, Single Mode, SC, 30KM) ICP DAS NSM-206PFCS CR
Feature
• 4 PoE/PoE+ PSE capable ports, fully compliant to IEEE 802.3af/at
• Up to 30 watts per PoE port at 24~57 VDC Power Input
• Supports operating temperatures from -40 °C ~ +75 °C
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• Power input 12~57 VDC wide range redundant power inputs
• Broadcast Storm protection
• Automatic MDI/MDI-X crossover for plug-and-play
• Single-mode, SC Connector Fiber supports
• DIN-Rail Mounting, Wall Mounting (optional)
Introduction
The NSM-206PFCS is 6-port unmanaged Ethernet switch supporting Power-over-Ethernet on ports 1 to 4. The switch is classified as power source equipment (PSE), and when used in this way, the NSM-206PFCS enable centralization of the power supply, providing up to 30 watts. The NSM-206PFCS can be used to power IEEE 802.3af/at standard devices (PD).
Application
Specifications
| LED Indicators |
| Status |
PWR1, PWR2, POE, Link/Act, Speed |
| Ethernet |
| Ports |
4 x RJ-45, 10/100Base-TX |
| Standards |
IEEE 802.3 for 10 Base-T
IEEE 802.3u for 100 Base-TX
IEEE 802.3x for Flow Control, Back Pressure Flow Control
IEEE 802.3af Power Over Ethernet
IEEE 802.3at Power Over Ethernet
Energy Efficient Ethernet (EEE) as per 802.3az; this provides power savings during idle network activity |
| Processing Type |
Store & forward; wire speed switching |
| MAC Table |
2048 |
| Frame Buffer Memory |
768 Kbit |
| Isolation |
1500 Vrms 1 minute |
| DIP Switch |
Broadcast Storm protection |
| PoE Technology |
| PoE Compliance |
100% IEEE 802.3at compliant |
| PoE Power |
Up to 30 watts per channel |
| PoE Operation |
Automatic detection and power management |
| PoE Pin Assignments |
V+ (pin 1, 2), V-(pin 3, 6) |
| PoE Disconnect Mode |
DC disconnect |
| PoE Voltage |
+52 VDC |
| Fiber |
| Ports |
2 Port 100 Base-FX
SC connector |
| Mode |
Single-Mode |
| Fiber Cable |
8.3/125, 8.7/125, 9/125 or 10/125 μm |
| Distance |
30 km, (9/125 μm recommended) for full duplex |
| Wavelength |
1300 or 1310nm |
| TX Output |
-15 dBm Min.
-8 dBm Max. |
| RX Sensitivity |
-34 dBm Max. |
| RX Overload |
-5 dBm |
| Budget |
19 dBm |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
12 ~ 57 VDC Redundant dual Input |
| Redundant Power Inputs |
Yes |
| Consumption |
0.125 A @ 12 VDC without PD loading, 6.2A @ 24VDC with PD full loading (15.4W per ports)
0.15 A @ 24 VDC without PD loading, 5.8A @ 24VDC with PD full loading (30W per ports)
0.10 A @ 48 VDC without PD loading, 2.9A @ 48VDC with PD full loading (30W per ports) |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
DIN-rail mounting: 28 x 160 x 128 (W x L x H)
Wall mounting: 28 x 199 x 121 (W x L x H) |
| Installation |
DIN-rail mounting or wall mounting (optional) |
| Environment |
| Operating Temperature |
-40 °C ~ +75 °C |
| Storage Temperature |
-40 °C ~ +85 °C |
| Humidity |
10% ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| NSM-206PFCS CR |
Single-mode, SC Connector, 4-port 10/100 Mbps PoE(PSE) with 2 Fiber ports Switch (RoHS) |
