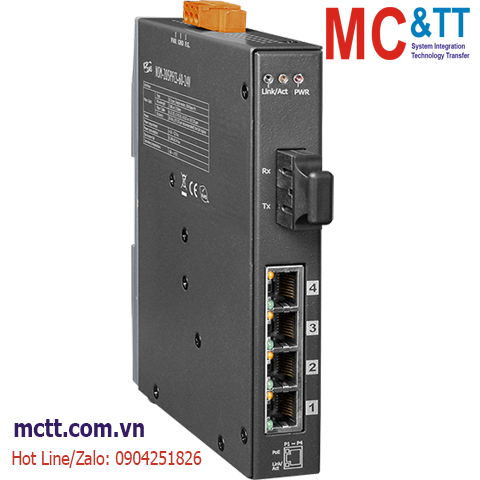

Switch công nghiệp 4 cổng PoE Ethernet + 1 cổng Quang (Dual Fiber, Single Mode, SC, 60KM) ICP DAS NSM-205PFCS-60-24V CR
Feature
• Provides 1 x 100-FX fiber port plus 4 x Ethernet ports
• Each port supports both 10/100 Mbps speed auto negotiation
• Store-and-forward architecture
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• 4 PoE ports with Power Sourcing Equipment (PSE) operation
• Automatic MDI/MDI-X crossover for plug-and-play
• Auto-detection of PD (powered devices) and automatic power management
• Over-temperature, over-current and over/under-voltage detection
• Supports operating temperatures from -30 ~ +75 °C
• Single-mode, SC Connector Fiber supports
• DIN-Rail Mounting
Introduction
The NSM-205PFCS-60-24V is a 4-port unmanaged PoE (PSE) with 1 fiber port switch; it supports 4 PoE ports which are classified as power source equipments (PSE). The NSM-205PFCS-60-24V makes centralized power supply come true and provides up to 15.4 watts of power per PSE port. Using fiber optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 60 km) transmissions. The NSM-205PFCS-60-24V is designed with 24 VDC to 48 VDC boost for PoE application where 48 VDC power supply is not available.
Application
Specifications
| EMS Protection |
| ESD (IEC 61000-4-2) |
± 4 kV Contact |
| LED Indicators |
| Status |
Power, Link/Act, Power Device is detected |
| Ethernet |
| Ports |
4 x RJ-45, 10/100Base-TX |
| Standards |
IEEE 802.3, 802.3u, 802.3x ,802.3af (Power over Ethernet) |
| Processing Type |
Store & forward; wire speed switching |
| MAC Table |
1024 |
| Memory Bandwidth |
3.2 Gbps |
| Frame Buffer Memory |
512 Kbit |
| Flow Control |
IEEE 802.3x flow control, back pressure flow control |
| Isolation |
1500 Vrms 1 minute |
| PoE Technology |
| PoE Compliance |
100% IEEE 802.3af compliant |
| PoE Power |
Up to 15.4 watts per channel |
| PoE Operation |
Automatic detection and power management |
| PoE Pin Assignments |
V+ (Pin 1,2), V- (Pin 3,6) |
| PoE Disconnect Mode |
DC disconnect |
| Fiber |
| Ports |
1 x 100 Base-FX, SC connector |
| Mode |
Single-Mode |
| Fiber Cable |
8.3/125, 8.7/125, 9/125 or 10/125 μm |
| Distance |
60 km, (9/125 μm recommended) for full duplex |
| Wavelength |
1300 or 1310nm |
| TX Output |
-5 dBm Min.
0 dBm Max. |
| RX Sensitivity |
-34 dBm |
| RX Overload |
-5 dBm |
| Budget |
30 dBm |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+18 ~ +32 VDC |
| Consumption |
0.24 A @ 24 VDC without PD loading;
3.2 A @ 24 VDC with PD full loading;
4.6 A @ 18 VDC with PD full loading |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
25 x 168 x 133 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Ingress Protection Rating |
IP30 |
| Environment |
| Operating Temperature |
-30 °C ~ +75 °C |
| Storage Temperature |
-40 °C ~ +85 °C |
| Humidity |
10% ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| NSM-205PFCS-60-24V CR |
Single-mode 60 km, SC Connector, 4-port 10/100 Mbps PoE (PSE) with 1 Fiber port and 24 VDC Input Switch; metal case (RoHS) |
