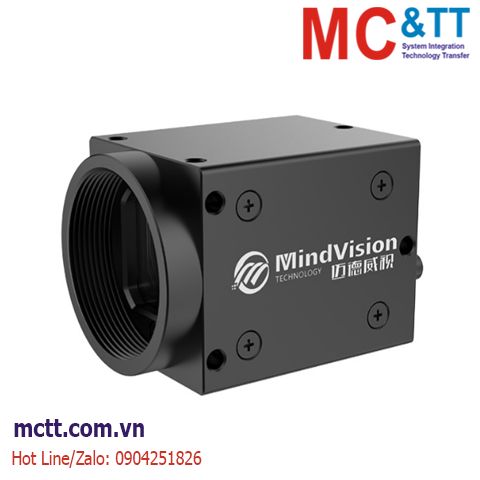

Camera công nghiệp USB2.0 Area Scan 1/2.5" CMOS, 2.2um, 5MP, 2592x1944, 9fps MindVision MV-UBS500C

Mã sản phẩm: MV-UBS500C

Thương hiệu: MindVision

Tình trạng: Còn hàng

USB2.0 Area Scan Camera, 1/2.5" CMOS, 2.2um, 5MP, 2592x1944, 9fps, Color type

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Camera công nghiệp USB2.0 Area Scan 1/2.5" CMOS, 2.2um, 5MP, 2592x1944, 9fps MindVision MV-UBS500C

USB2.0 has a simple structure, a variety of single-board modules, small size, which can effectively save product size, and is suitable for small instruments and small devices; no external power supply is required, easy to use, and high performance price ratio

Tính năng

USB2.0 interface, no need for external power supply, plug and play
Support 8bit to 12bit raw data output
Support external trigger, strobe synchronization
Support Windows, Linux and ARM Linux, Android system
With hardware frame buffer, support more than 32 cameras working at the same time
Custom data can be written in the camera

Thông số kỹ thuật

Specifications	MV-UBS500C	MV-UBS500M
Sensor	1/2.5" CMOS
Sensor type	MT9P006	MT9P031
Camera type	Color	Mono
Pixel size	2.2umx2.2um
Effective pixels	5MP
Resolution @ frame rate	2592x1944MAX@9fps
Exposure mode	Line exposure, global start
Signal to noise ratio	38.5dB	38.1dB
Dynamic range	67.74dB	70.1dB
Sensitivity	1.76 V/lux-sec (550nm)	1.4 V/lux-sec (550nm)
GPIO	1 optical isolation input, 2 optical isolation output
Output pixel width	12bit
AD width	12bit
Frame buffer	32MB
Exposure time range	0.0582~905.1ms
Maximum gain (multiple)	7.88
User EEPROM	2K Bytes
Video output format	Bayer GRBG 8/12bit	Mono 8/12bit
Lens interface	C/CS port, providing adapter rings
Data interface	USB2.0
Power supply	5V
Power	<2W
Boundary dimension	29(mm)X29(mm)X35.7(mm)(Lens base and rear shell interface are not included)
Weight	<75g
Working temperature	0~50℃
Working humidity	20~80%(No Condensation)
Storage temperature	-30~60℃
Storage humidity	20~95%(No Condensation)
Operating system	WINXP,WIN7 /8 /10 32 & 64 -bit systems, Linux and ARM Linux drivers (customizable), Android platform drivers (customizable)
Driver	Directshow components Halcon special components Labview dedicated drive OCX components TWAIN components
Programming language	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other function	Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc
