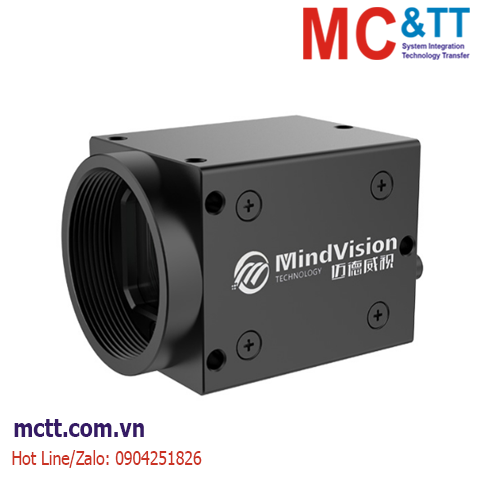

Camera công nghiệp USB2.0 Area Scan 1.3MP, 1/2.7", 4um, 1280X1024, 90fps MindVision MV-UC133GM
MV-UC133GC/M has high resolution, low noise, excellent performance, easy installation and usage and other features.It is suitable for industrial inspection, medical treatment, scientific research, education and other fields.
Tính năng
- It supports multiple resolutions and frame rates, and the captured images are clear and delicate with rich details.
- It supports demand customization to meet users' diverse application
scenario requirements.
- It has wide system compatibility, seamlessly docks with multiple devices and platforms, and improves convenience.
- It can be used by adopting a USB interface, reducing the usage threshold
Thông số kỹ thuật
| Model |
Product Model |
MV-UC133GC |
MV-UC133GM |
|
Product Name |
USB2.0 Camera
|
Sensor
|
Color/Mono |
Color |
Mono |
| Sensor Model |
MindVision
|
| Sensor Type |
CMOS
|
| Optical Size |
1/2.7" |
| Pixel Size |
4umx4um
|
| Exposure Method |
Global Shutter
|
| Focus Mode |
Manual Focus |
| Efective Pixels |
1.3MP
|
| AD Width |
10bit
|
Performance
Parameters
|
Signal-to-Noise Ratio |
40dB |
| Dynamic Range |
60dB |
| Sensitivity |
8V/Lux·s |
8V/Lux·s |
| Quantum Efciency |
/
|
| Resolution@Frame Rate |
1280X1024@90FPS |
| Video Output Format |
MJPG/YUY2 |
MJPG/YUY2 |
| Image Storage Format |
BMP |
| Gain Ratio |
0-64
|
| Exposure Time Ratio |
0-198
|
Electrical
Characteristics
|
Data Interface |
USB2.0 |
| Power Supply |
5V（±10%） |
| Power |
<1W
|
Structural
Characteristics
|
Heat Dissipation Method |
Aluminum Alloy Body Natural Cooling
|
| Lens Mount |
CS Mount
|
| External Dimensions |
29x29x35.7mm
|
| Weight |
<75g
|
| Ingress Protection Rating |
IP40
|
| Temperature |
Operating Temperature 0~50°C / Storage Temperature -30~60°C
|
| Humidity |
Operating Humidity 20~80% (non-condensing) / Storage Humidity 20~95% (non-condensing)
|
Protocol
Standards
|
Operating system |
WinXP, Win7/8/10 (32 & 64-bit systems), Linux and ARM Linux drivers (customizable), Android platform drivers (customizable)
|
| Software |
Supports DirectShow component and V4L2 component |
| Vision Standard Protocol |
/
|
| Certification |
CE,RoHS
|
Other functions
|
Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc |
