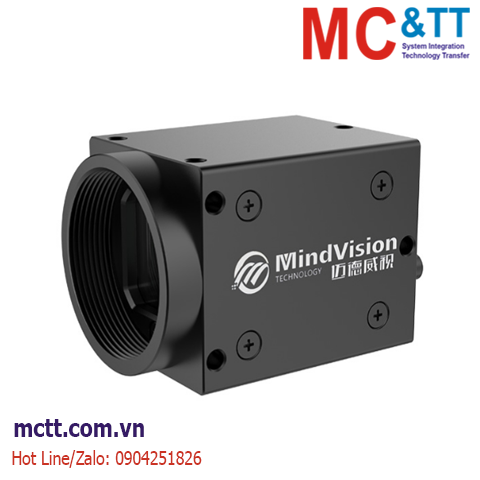

Camera công nghiệp USB2.0 Area Scan 8MP, 1/1.8", 2um, 3840*2096, 20fps MindVision MV-UM801C
MV-UM801C has high resolution, low noise, excellent performance, easy installation and usage and other features.It is suitable for industrial inspection, medical treatment, scientific research, education and other fields.
Tính năng
- USB2.0 interface, no need for external power supply, plug and play.
- Support 8bit to 12bit raw data output.
- Support external trigger, strobe synchronization.
- Support Windows, Linux and ARM Linux, Android system.
- With hardware frame buffer, support more than 32 cameras working at the same time.
- Custom data can be written in the camera
Thông số kỹ thuật
| Model |
Product Model |
MV-UM801C
|
|
Product Name |
USB2.0 Camera
|
Sensor
|
Color/Mono |
Color
|
| Sensor Brand |
MindVision |
| Sensor Model |
MindVision |
| Sensor Type |
CMOS
|
| Optical Size |
1/1.8" |
| Pixel Size |
2 μm x 2 μm
|
| Exposure Method |
Line Exposure
|
| Efective Pixels |
8MP
|
| AD Width |
12bit
|
Performance
Parameters
|
Signal-to-Noise Ratio |
/ |
| Dynamic Range |
78dB |
| Sensitivity |
3637 mV/Lux.s |
| Quantum Efciency |
90% |
| Resolution@Frame Rate |
3840× 2096@20fps |
| Output Pixel Width |
12bit
|
| Video Output Format |
MJPG/YUY2
|
| Maximum gain |
0-248 Times Adjustable
|
| Exposure Time Range |
0-16ms
|
| Trigger Mode |
Continuous Mode/Soft Trigger
|
| Frame Cache |
/
|
| User EEPROM |
2KB
|
Electrical
Characteristics
|
Data Interface |
USB2.0 TYPE B |
| I/O Port |
/ |
| Power Supply |
USB 5V |
| Power |
<2W
|
Structural
Characteristics
|
Heat Dissipation Method |
Aluminum alloy body with natural heat dissipation |
| Lens Mount |
CS Mouth
|
| External Dimensions |
29 * 29 * 32mm (Excluding Lens Mount) |
| Weight |
<100g
|
| Ingress Protection Rating |
IP40
|
| Temperature |
Working temperature 0~50 degrees/Storage temperature -30~60 degrees
|
| Humidity |
Working humidity 20~80% (no condensation)/Storage humidity 20~95% (no condensation)
|
Protocol
Standards
|
Operating system |
WINXP, WIN7/8/10/11 32&64 bit systems Linux system, ARM Linux system, Android system
|
| Software |
Directshow component, Halcon dedicated component, Labview dedicated driver, OCX component, TWAIN component |
| Vision Standard Protocol |
Dshow Twain |
| Certification |
CE,RoHS
|
