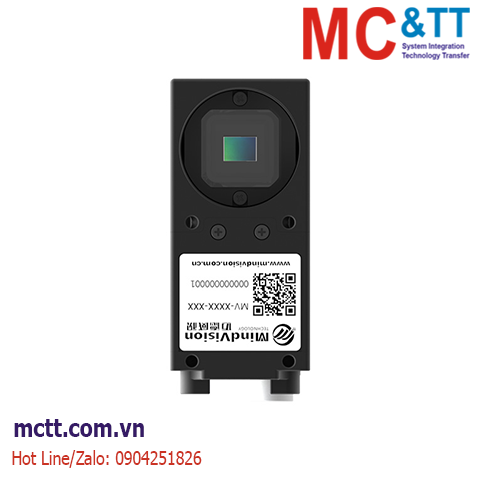

Camera công nghiệp USB3.0 90° Area Scan 1/1.7" CMOS, 1.85um, 12MP, 4000x3000, 32fps MindVision MV-SUA1201C-90
The 90 degree right angle industrial camera sensor surface designed by MindVision is only 29mm in vertical direction, which solves the problem of equipment installation space limitation on the market and brings new solutions to industry users; The performance and mounting holes of cameras of the same model are basically the same, so customers can achieve seamless replacement.
Tính năng
- The camera comes with programmable IO
- Support external trigger strobe to take photos synchronously.
- Support 8bit raw data output.
- Fully compatible with GIGE camera's SDK for seamless replacement
- Multiple cameras on one computer can work stably without dropping or losing frames for a long time
- Support PC Linux system and ARM Linux system, available to be integrated into embedded devices
- Compatible with Vision protocol, seamlessly compatible with Halcon, VisionPro, Labview and other vision software
Thông số kỹ thuật
| Specifications |
MV-SUA1201C-90 |
MV-SUA1201M-90 |
| Sensor |
1/1.7" CMOS |
| Camera type |
Color |
Mono |
| Pixel size |
1.85umx1.85um |
| Effective pixels |
12MP |
| Resolution @ frame rate |
4000x3000MAX@32fps |
| Sensitivity |
250mV 1/30s |
| Exposure mode |
Line exposure |
| Signal to noise ratio |
38dB |
| Dynamic range |
66dB |
| GPIO |
1 opto-coupler isolated input, 1 opto-coupler isolated output, 1 non-isolated input and output |
| Output pixel width |
10bit |
| AD width |
12bit |
| Frame buffer |
128M Bytes |
| Exposure time range |
0.0102~2665.1ms |
| Maximum gain (multiple) |
22 |
| User EEPROM |
2K Bytes |
| Frequency output format |
Bayer RG 8bit |
Mono 8bit |
| Video output format |
USB3Vision 1.0, GenICam |
| Lens interface |
C-mount |
| Data interface |
USB3.0 |
| Power supply |
USB 5V/Aviation head power supply 12V |
| Power |
<3W |
| Boundary dimension |
29X29X60.45(mm) (Lens base and rear shell interface are not included) |
| Weight |
<100g |
| Working temperature |
0~50℃ |
| Working humidity |
20~80%(No Condensation) |
| Storage temperature |
-30~60℃ |
| Storage humidity |
20~95%(No Condensation) |
| Operating system |
WINXP, WIN7 / 8/10 32 & 64-bit systems, Linux and ARM Linux drivers and Android platform drivers MAC OS system |
| Driver |
Directshow components Halcon special components Labview dedicated drive OCX components TWAIN components |
| Programming language |
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Other function |
Support ROI of any size custom r Other functions esolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc |
