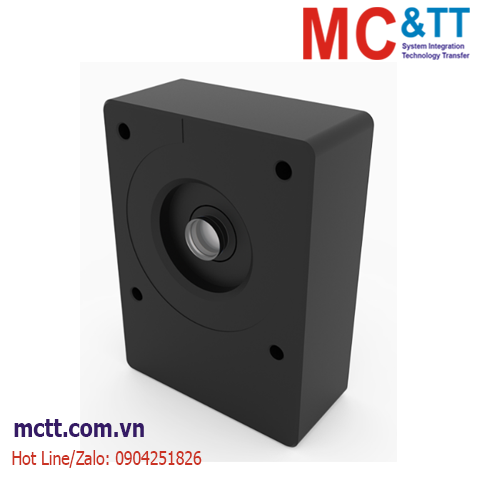

Camera công nghiệp USB2.0 Area Scan 16MP, 1/2.8", 1.12um, 4656x3496, 9fps MindVision MV-UC1601C

Mã sản phẩm: MV-UC1601C

Thương hiệu: MindVision

Tình trạng: Còn hàng

USB2.0 Area Scan Camera 16MP, 1/2.8", 1.12um, 4656x3496, 9fps,Shutter Rolling, Color

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Camera công nghiệp USB2.0 Area Scan 16MP, 1/2.8", 1.12um, 4656x3496, 9fps MindVision MV-UC1601C

MV-UC1601C has high resolution, low noise, excellent performance, easy installation and usage and other features.It is suitable for industrial inspection, medical treatment, scientific research, education and other fields.

Tính năng

It supports multiple resolutions and frame rates, and the captured images are clear and delicate with rich details.
It supports demand customization to meet users' diverse application scenario requirements.
It has wide system compatibility, seamlessly docks with multiple devices and platforms, and improves convenience.
It can be used by adopting a USB interface, reducing the usage threshold

Thông số kỹ thuật

Model	Product Model	MV-UC1601C
	Product Name	USB2.0 Camera
Sensor	Color/Mono	Color
	Sensor Model	MindVision
	Sensor Type	CMOS
	Optical Size	1/2.8"
	Pixel Size	1.12umx1.12um
	Exposure Method	Rolling Shutter
	Focus Mode	Manual Focus
	Efective Pixels	16MP
	AD Width	10bit
Performance Parameters	Signal-to-Noise Ratio	/
	Dynamic Range	/
	Sensitivity	/
	Quantum Efciency	/
	Resolution@Frame Rate	4656x3496 MAX@9fps
	Output Pixel Width	/
	Video Output Format	YUY2/MJPG
	Image Storage Format	BMP
	Gain Ratio	0-100
	Exposure Time Ratio	0-31
Electrical Characteristics	Data Interface	USB2.0
	I/O Port	/
	Power Supply	5V（±10%）
	Power	<1W
Structural Characteristics	Heat Dissipation Method	Aluminum Alloy Body Natural Cooling
	Lens Mount	Built-in lens; object distance 240mm; field of view 350×270mm (tolerance ±10mm)
	External Dimensions	38x51x18mm (excluding lens mount and rear shell interface)
	Weight	<60g
	Ingress Protection Rating	IP40
	Temperature	Operating Temperature 0~50°C / Storage Temperature -30~60°C
	Humidity	Operating Humidity 20~80% (non-condensing) / Storage Humidity 20~95% (non-condensing)
Protocol Standards	Operating system	WIN7/8/10/11 systems (32 & 64-bit), Linux systems (32 & 64-bit)
	Software	Supports DirectShow component and TWAIN component
	Vision Standard Protocol	/
	Certification	CE,RoHS
Other Features		Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction,ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.
