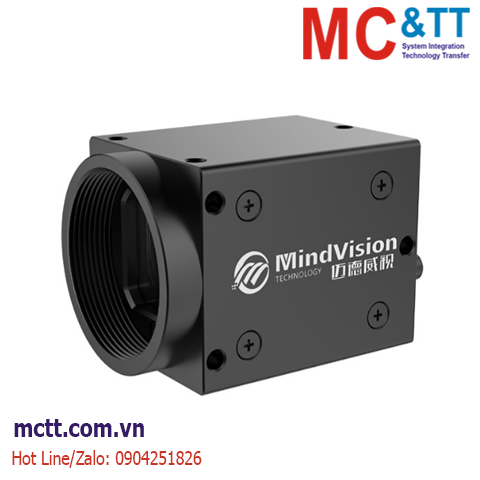

Camera công nghiệp USB2.0 Area Scan 1.3MP, 1/2.7", 4um, 1280X1024, 90fps MindVision MV-UC133GC

Mã sản phẩm: MV-UC133GC

Thương hiệu: MindVision

Tình trạng: Còn hàng

USB2.0 Area Scan Camera 1.3MP, 1/2.7", 4um, 1280X1024, 90fps, Global shutter, Color/Mono

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Camera công nghiệp USB2.0 Area Scan 1.3MP, 1/2.7", 4um, 1280X1024, 90fps MindVision MV-UC133GC

MV-UC133GC/M has high resolution, low noise, excellent performance, easy installation and usage and other features.It is suitable for industrial inspection, medical treatment, scientific research, education and other fields.

Tính năng

It supports multiple resolutions and frame rates, and the captured images are clear and delicate with rich details.
It supports demand customization to meet users' diverse application
scenario requirements.
It has wide system compatibility, seamlessly docks with multiple devices and platforms, and improves convenience.
It can be used by adopting a USB interface, reducing the usage threshold

Thông số kỹ thuật

Model	Product Model	MV-UC133GC	MV-UC133GM
	Product Name	USB2.0 Camera
Sensor	Color/Mono	Color	Mono
	Sensor Model	MindVision
	Sensor Type	CMOS
	Optical Size	1/2.7"
	Pixel Size	4umx4um
	Exposure Method	Global Shutter
	Focus Mode	Manual Focus
	Efective Pixels	1.3MP
	AD Width	10bit
Performance Parameters	Signal-to-Noise Ratio	40dB
	Dynamic Range	60dB
	Sensitivity	8V/Lux·s	8V/Lux·s
	Quantum Efciency	/
	Resolution@Frame Rate	1280X1024@90FPS
	Video Output Format	MJPG/YUY2	MJPG/YUY2
	Image Storage Format	BMP
	Gain Ratio	0-64
	Exposure Time Ratio	0-198
Electrical Characteristics	Data Interface	USB2.0
	Power Supply	5V（±10%）
	Power	<1W
Structural Characteristics	Heat Dissipation Method	Aluminum Alloy Body Natural Cooling
	Lens Mount	CS Mount
	External Dimensions	29x29x35.7mm
	Weight	<75g
	Ingress Protection Rating	IP40
	Temperature	Operating Temperature 0~50°C / Storage Temperature -30~60°C
	Humidity	Operating Humidity 20~80% (non-condensing) / Storage Humidity 20~95% (non-condensing)
Protocol Standards	Operating system	WinXP, Win7/8/10 (32 & 64-bit systems), Linux and ARM Linux drivers (customizable), Android platform drivers (customizable)
	Software	Supports DirectShow component and V4L2 component
	Vision Standard Protocol	/
	Certification	CE,RoHS
Other functions		Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc
