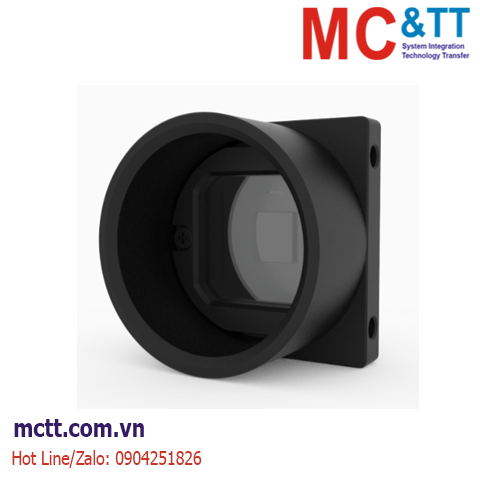

Camera công nghiệp USB2.0 Area Scan 4MP, 1/3", 2um, 2506*1440, 13fps MindVision MV-UC401C

Mã sản phẩm: MV-UC401C

Thương hiệu: MindVision

Tình trạng: Còn hàng

USB2.0 Area Scan Camera 4MP, 1/3", 2um, MJPG：2506*1440 YUY2：1280*720, 13fps, 0.022~21.1ms, Shutter Rolling, Color

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Camera công nghiệp USB2.0 Area Scan 4MP, 1/3", 2um, 2506*1440, 13fps MindVision MV-UC401C

MV-UC401C has high resolution, low noise, excellent performance, easy installation and usage and other features.It is suitable for industrial inspection, medical treatment, scientific research, education and other fields.

Tính năng

It supports multiple resolutions and frame rates, and the captured images are clear and delicate with rich details.
It supports demand customization to meet users' diverse application scenario requirements.
It has wide system compatibility, seamlessly docks with multiple devices and platforms, and improves convenience.
It can be used by adopting a USB interface, reducing the usage threshold

Thông số kỹ thuật

Model	Product Model	MV-UC401C
	Product Name	USB2.0 Camera
Sensor	Color/Mono	Color
	Sensor Model	MindVision
	Sensor Type	CMOS
	Optical Size	1/3"
	Pixel Size	2 μm x 2 μm
	Exposure Method	Rolling Shutter
	Focus Mode	Manual Focus
	Efective Pixels	4MP
	AD Width	10bit
Performance Parameters	Signal-to-Noise Ratio	38.3dB
	Dynamic Range	64.6dB
	Sensitivity	1900 mV/Lux-sec
	Quantum Efciency	/
	Resolution@Frame Rate	MJPG：2506X1440 MAX@13FPS YUY2：1280X720 MAX@13FPS
	Output Pixel Width	/
	Video Output Format	MJPG/YUY2
	Image Storage Format	BMP
	Gain Ratio	0-100
	Exposure Time Ratio	0-31
Electrical Characteristics	Data Interface	USB2.0
	I/O Port	/
	Power Supply	5V（±10%）
	Power	<1W
Structural Characteristics	Heat Dissipation Method	Aluminum Alloy Body Natural Cooling
	Lens Mount	C Mouth
	External Dimensions	29x29x28.4mm (excluding lens mount and rear shell interface)
	Weight	<75g
	Ingress Protection Rating	IP40
	Temperature	Working temperature 0~50 degrees/Storage temperature -30~60 degrees
	Humidity	Working humidity 20~80% (no condensation)/Storage humidity 20~95% (no condensation)
Protocol Standards	Operating system	WIN7/8/10/11 systems (32 & 64-bit), Linux systems (32 & 64-bit)
	Software	Supports DirectShow component and TWAIN component
	Vision Standard Protocol	/
	Certification	CE,RoHS
Other Features		Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction,ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.
