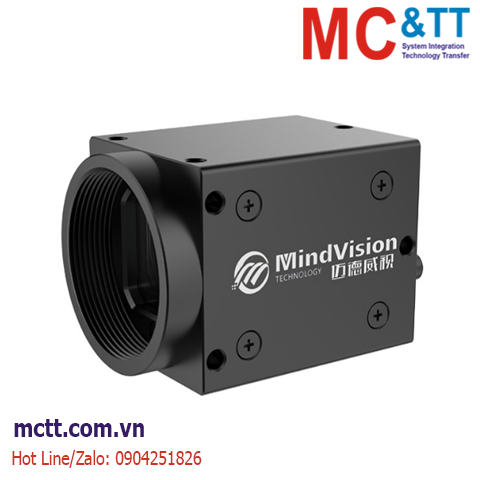

Camera công nghiệp USB2.0 Area Scan 4MP, 1/1.8", 2.9um, 2688x1520, 9fps MindVision MV-UBS405C

Mã sản phẩm: MV-UBS405C

Thương hiệu: MindVision

Tình trạng: Còn hàng

USB2.0 Area Scan Camera 4MP, 1/1.8", 2.9um, 2688x1520, 9fps, 0.034~2228.19ms, Color

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Camera công nghiệp USB2.0 Area Scan 4MP, 1/1.8", 2.9um, 2688x1520, 9fps MindVision MV-UBS405C

MV-UBS405C has high resolution, low noise, excellent performance, easy installation and usage and other features.It is suitable for industrial inspection, medical treatment, scientific research, education and other fields.

Tính năng

USB2.0 interface, no need for external power supply, plug and play.
Support 8bit to 12bit raw data output.
Support external trigger, strobe synchronization.
Support Windows, Linux and ARM Linux, Android system.
With hardware frame buffer, support more than 32 cameras working at the same time.
Custom data can be written in the camera

Thông số kỹ thuật

Model	Product Model	MV-UBS405C
	Product Name	USB2.0 Camera
Sensor	Color/Mono	Color
	Sensor Model	Mindvision
	Sensor Type	CMOS
	Optical Size	1/1.8"
	Pixel Size	2.9 μm x 2.9 μm
	Exposure Method	Line Exposure
	Efective Pixels	4MP
	AD Width	12bit
Performance Parameters	Signal-to-Noise Ratio	42dB
	Dynamic Range	86.7dB；100dB@HDR
	Sensitivity	8107 mV/lux·s
	Quantum Efciency	85%
	Resolution@Frame Rate	2688×1520@9fps
	Output Pixel Width	12bit
	Video Output Format	Bayer BG 8bit
	Maximum gain	1-36 times continuously adjustable
	Exposure Time Range	0.034~2228.19
	Trigger Mode	Continuous/Software Trigger
	Frame Bufer	128MB
	User-Defned Data Area	2KB
Electrical Characteristics	Data Interface	USB2.0 TYPE B
	I/O Port	/
	Power Supply	USB 5V
	Power	<2W
Structural Characteristics	Heat Dissipation Method	Aluminum alloy body with natural heat dissipation
	Lens Mount	CS port provides an adapter ring
	External Dimensions	29 * 29 * 32 (excluding lens base and rear shell interface)
	Weight	<75g
	Ingress Protection Rating	IP40
	Temperature	Working temperature 0~50 degrees/Storage temperature -30~60 degrees
	Humidity	Working humidity 20~80% (no condensation)/Storage humidity 20~95% (no condensation)
Protocol Standards	Operating system	WINXP, WIN7/8/10/11 32&64 bit systems Linux system, ARM Linux system, Android system
	Software	Directshow component, Halcon dedicated component, Labview dedicated driver, OCX component, TWAIN component
	Vision Standard Protocol	Dshow Twain
	Certification	CE,RoHS
(★ 1) "AD width" refers to the maximum width supported by the sensor itself, and the width output by the camera is the "output pixel width", which is less than or equal to the "AD width"
