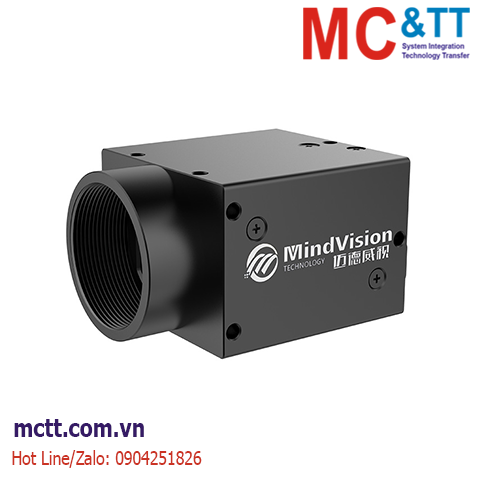

Camera công nghiệp GigE Area Scan 12MP, 1", 3.2um, 4096x3072, 9.5fps MindVision MV-GEF1205GM
MV-GEF1205GC/GM has high definition, low noise, excellent performance, easy installation and usage and other features. It is suitable for industrial inspection, medical treatment, scientific research, education, security and other fields.
Tính năng
- 100 meters long-distance stable transmission, optional POE power supply.
- Compatible with VISION standard, the free drive direcyly supports software such as Halcon and VisionPro.
- Support external trigger and flash synchronization, up to 7 GPIO, all opto-isolated.
- Support 8bit format output.
- SDK supports Windows,Linux,Mac OS systems.
- Unique data packet retransmission technology ensures reliable data transmission. Excellent SDK ,easy to use like a USB camera, plug and play.
- Excellent SDK ,easy to use like a USB camera.
- Support multiple cameras working at the same time, the number is unlimited, and can be networked arbitrarily
Thông số kỹ thuật
| Model |
MV-GEF1205GC |
MV-GEF1205GM |
| Sensor |
1" CMOS
|
| Shutter type |
Global shutter
|
| Camera type |
Color |
Mono |
| Pixel size |
3.2umx3.2um |
| Effective pixels |
12MP
|
| Resolution @ frame rate |
4096x3072Max@9.5FPS |
| Exposure mode |
Frame exposure |
| Signal to Noise Ratio |
40dB |
| Dynamic range |
68dB |
| Quantum effciency |
60%
|
63%
|
| GPIO |
1 optically isolated input, 1 optically isolated output; 3 inputs and 4 outputs optiona |
| Output pixel width |
12bit
|
| AD width |
12bit
|
| Frame buffer |
128M Bytes
|
| Exposure time |
0.031~2031.6ms |
| Maximum gain (multiple) |
8 |
| User EEPROM |
2K Bytes
|
| Video output format |
Bayer RG 8bit |
Mono 8bit |
Visual standard protocol
|
GigE Vision V1.2, GenICam |
| Lens interface |
C/CS interface, adapter ring provided
|
Port
|
Gigabit Network and POE (Optional) |
| Power supply |
12~24V/POE 48~57V(POE is optional) |
| Power |
<2.5W
|
| Boundary dimension |
29(mm)X39.5(mm)X40(mm) (Lens mount and back housing mount are not included) |
| Weight |
<75g
|
| Working temperature |
0~50℃
|
| Working humidity |
20~80%(No Condensation)
|
| Storage temperature |
-30~60℃
|
| Storage humidity |
20~95%(No Condensation)
|
| Operating system |
WINXP, WIN7 / 8/10 32 & 64-bit systems, Linux and ARM Linux drivers and Android platform drivers MAC OS system |
| Drive program |
Directshow components Halcon special components Labview dedicated drive OXC components TWAIN components |
| Programming language |
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Other functions |
Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc |
Tài liệu
Datasheet
