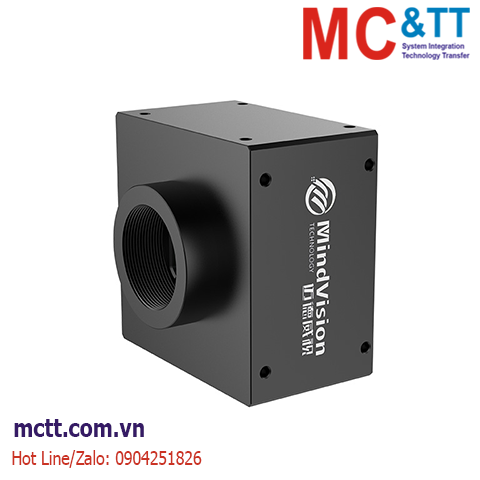

Camera công nghiệp GigE Area Scan 4MP, 1.1", 5.94um, 2048×2048, 28fps MindVision MV-GEC404M
MV-GEC404C/M has high definition, low noise, excellent performance, easy installation and usage and other features. It is suitable for industrial inspection, medical treatment, scientific research, education, security and other fields.
Tính năng
- 100 meters long-distance stable transmission.
- Compatible with VISION standard, directly support Halcon, VisionPro and other software without drive.
- Support external trigger and strobe synchronization, all photoelectrically isolated.
- Support 8bit and 12bit lossless format output.
- SDK supports Windows,Linux,Mac OS systems
- Unique data packet retransmission technology ensures reliable data transmission.
- Excellent SDK design, as easy as using a USB camera, plug and play
- Support multiple cameras to work at the same time, the number is unlimited, and can be networked arbitrarily
Thông số kỹ thuật
| Model |
MV-GEC404C |
MV-GEC404M |
| Sensor |
1.1" CMOS
|
| Shutter type |
Rolling shutter
|
| Camera type |
Color |
Mono |
| Pixel size |
5.94umx5.94um |
| Effective pixels |
4MP
|
| Resolution @ frame rate |
2048x2048MAX@28fps |
| Exposure mode |
Line exposure |
| Signal to Noise Ratio |
＞47dB@LCG |
| Dynamic range |
＞72dB(Linear) |
| Sensitivity |
>40V/lux*s@HCG
|
| GPIO |
2 channels of optocoupler isolated output,1 channel of optocoupler isolated input, supporting trigger and flash synchronization modes |
| Output pixel width |
12bit
|
| AD width |
16bit
|
| Frame buffer |
128M Bytes
|
| Exposure time |
0.017~288568.1ms |
| Maximum gain (multiple) |
32 |
| User EEPROM |
2K Bytes
|
| Video output format |
Bayer 8/12bit |
Mono 8/12bit |
Visual standard protocol
|
GigE Vision, GenICam |
| Lens interface |
C mount
|
Port
|
Gigabit Network |
| Power supply |
Supports 12-24V ±10%; typical value: 12V |
| Power |
<3W
|
| Boundary dimension |
59.5x59.5x35.5(mm)(Lens base and rear shell interface are not included)
|
| Weight |
<220g
|
| Working temperature |
0~50℃
|
| Working humidity |
20~80%(No Condensation)
|
| Storage temperature |
-30~60℃
|
| Storage humidity |
20~95%(No Condensation)
|
| Operating system |
Windows XP/7/8/10/11 32-bit and 64-bit systems, Linux 32-bit and 64-bit systems, ARM Linux systems, Android systems, and MAC systems |
| Drive program |
Support GigE Vision protocol software, Directshow components, Halcon dedicated components, Labview dedicated drivers, OCX components, and TWAIN components |
| Programming language |
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Other functions |
Support ROI of any size Custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, Frame rate adjustment, custom camera name, etc. |
Tài liệu
Datasheet
