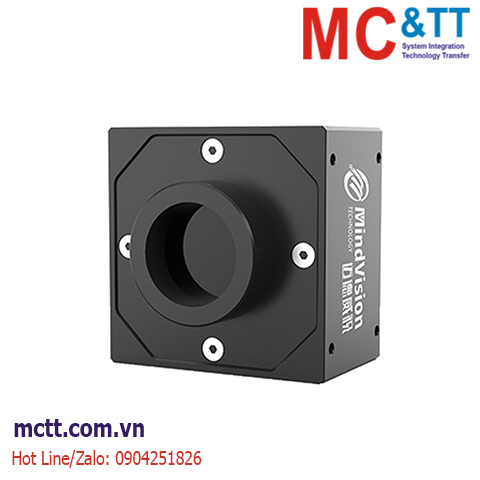

Camera công nghiệp GigE Area Scan 25MP, 1.1", 2.5um, 5120×5120, 4.5fps MindVision MV-GEC2500GM
MV-GEC2500GC/GM has high definition, low noise, excellent performance, easy installation and usage and other features. It is suitable for industrial inspection, medical treatment, scientific research, education, security and other fields.
Tính năng
- 100 meters long-distance stable transmission
- Compatible with VISION standard, the free drive direcyly supports software such as Halcon and VisionPro.
- Support external trigger and strobe synchronization, up to 7 GPIO, all photoelectrically
- Support 8bit and 12bit lossless format output
- SDK supports Windows, Linux, Mac OS systems.
- Unique data packet retransmission technology ensures reliable data transmission.
- Excellent SDK ,easy to use like a USB camera, plug and play.
- Support multiple cameras working at the same time, the number is unlimited, and can be networked arbitrarily
Thông số kỹ thuật
| Model |
MV-GEC2500GC |
MV-GEC2500GC |
| Sensor |
1.1" CMOS
|
| Shutter type |
Global shutter
|
| Camera type |
Color |
Mono |
| Pixel size |
2.5umx2.5um |
| Effective pixels |
25MP
|
| Resolution @ frame rate |
5120×5120 MAX@4.5FPS |
| Exposure mode |
Frame exposure |
| Signal to Noise Ratio |
38.1dB@12bit@1 gain |
| Dynamic range |
10bit:>60dB 12bit: >65dB |
| Sensitivity |
1.03x10^7 e-/((W/m^2)·s) @500nm
|
| Trigger Mode |
Continuous/Software Trigger/Hard Trigger |
| GPIO |
2 optically isolated outputs, 1 optically isolated input, support trigger and strobe synchronization modes |
| Output pixel width |
12bit
|
| AD width |
10/12bit
|
| Frame buffer |
128M Bytes
|
| Exposure time |
0.042~134007.97ms |
| Maximum gain (multiple) |
16.5 |
| User EEPROM |
2K Bytes
|
| Video output format |
Bayer GB 8/12bit YUV422 16bit RGB 8bit BGR 8bit |
Mono 8/12bit |
Visual standard protocol
|
GigE Vision, GenICam |
| Lens interface |
C mount |
Port
|
Gigabit Network |
| Power supply |
Supports 12-24V ±10%; typical value: 12V |
| Power |
<5W
|
| Boundary dimension |
59.5x59.5x35.5(mm)(Lens base and rear shell interface are not included) |
| Weight |
<250g
|
| Working temperature |
0~50℃
|
| Working humidity |
20~80%(No Condensation)
|
| Storage temperature |
-30~60℃
|
| Storage humidity |
20~95%(No Condensation)
|
| Operating system |
Windows XP/7/8/10/11 32&64-bit systems, Linux 32&64-bit systems, ARM Linux systems, Android systems, MAC systems |
| Drive program |
Support for GigE Vision protocol software, DirectShow components, dedicated Halcon components, dedicated LabVIEW drivers, OCX components, and TWAIN components |
| Programming language |
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Other functions |
Support ROI of any size Custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, Frame rate adjustment, custom camera name, etc. |
Tài liệu
Datasheet
