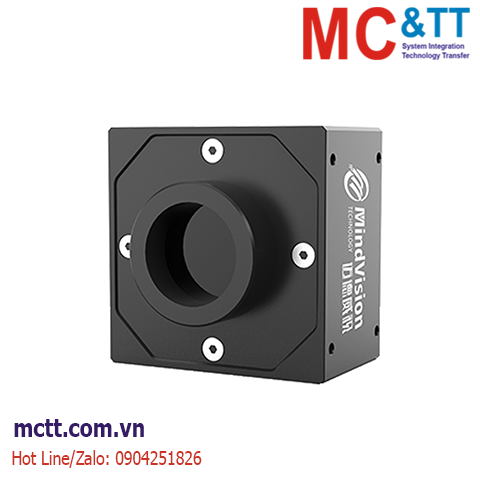

Camera công nghiệp Area Scan 1.1" CMOS, 2.5um, 25MP, 5120x5120, 4.5fps MindVision MV-GEC2500GC
MV-GEC2500GC/GM has high definition, low noise, excellent performance, easy installation and usage and other features. It is suitable for industrial inspection, medical treatment, scientific research, education, security and other fields
Tính năng
- 100 meters long-distance stable transmission
- Compatible with VISION standard, directly support Halcon, VisionPro and other software without drive
- Support external trigger and strobe synchronization, up to 7 GPIO, all photoelectrically isolated
- Support 8bit to 12bit lossless format output
- SDK supports Windows, Linux, Mac OS systems.
- Unique data packet retransmission technology ensures reliable data transmission.
- Excellent SDK, easy to use like a USB camera, plug and play.
- Support multiple cameras working at the same time, the number is unlimited, and can be networked arbitrarily.
Thông số kỹ thuật
| Specifications |
MV-GEC2500GC |
MV-GEC2500GM |
| Sensor |
1.1" CMOS |
| Camera type |
Color |
Mono |
| Pixel size |
2.5umx2.5um |
| Effective pixels |
25MP |
| Resolution @ frame rate |
5120×5120 MAX@4.5FPS |
| Exposure mode |
Frame exposure |
| Signal to Noise Ratio |
38.1dB@12bit@1 gain |
| Dynamic range |
10bit:>60dB 12bit: >65dB |
| Sensitivity |
1.03x10^7 e-/((W/m^2)·s) @500nm |
| Trigger Mode |
Continuous/Software Trigger/Hard Trigger |
| GPIO |
2 optically isolated outputs, 1 optically isolated input, support trigger and strobe synchronization modes |
| Output pixel width |
12bit |
| AD width |
10/12bit |
| Frame buffer |
128M Bytes |
| Exposure time |
0.042~134007.97ms |
| Maximum gain (multiple) |
16.5 |
| User EEPROM |
2K Bytes |
| Video output format |
Bayer GB 8/12bit YUV422 16bit RGB
8bit BGR 8bit |
Mono 8/12bit |
| Visual standard protocol |
GigE Vision, GenICam |
| Lens interface |
C mount |
| Port |
Gigabit Network |
| Power supply |
Supports 12-24V ±10%; typical value: 12V |
| Power |
<5W |
| Boundary dimension |
59.5x59.5x35.5(mm) (Lens base and rear shell interface are not included) |
| Weight |
<250g |
| Working temperature |
0~50℃ |
| Working humidity |
20~80%(No Condensation) |
| Storage temperature |
-30~60℃ |
| Storage humidity |
20~95%(No Condensation) |
| Operating system |
WINXP, WIN7 / 8/10 32 & 64-bit systems, Linux and ARM Linux drivers and Android platform driver MAC OS |
| Drive program |
DirectShow components Halcon special components Labview dedicated drive OCX components TWAIN components |
| Programming language |
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Other function |
Support ROI of any size Custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, Frame rate adjustment, custom camera name, etc. |
